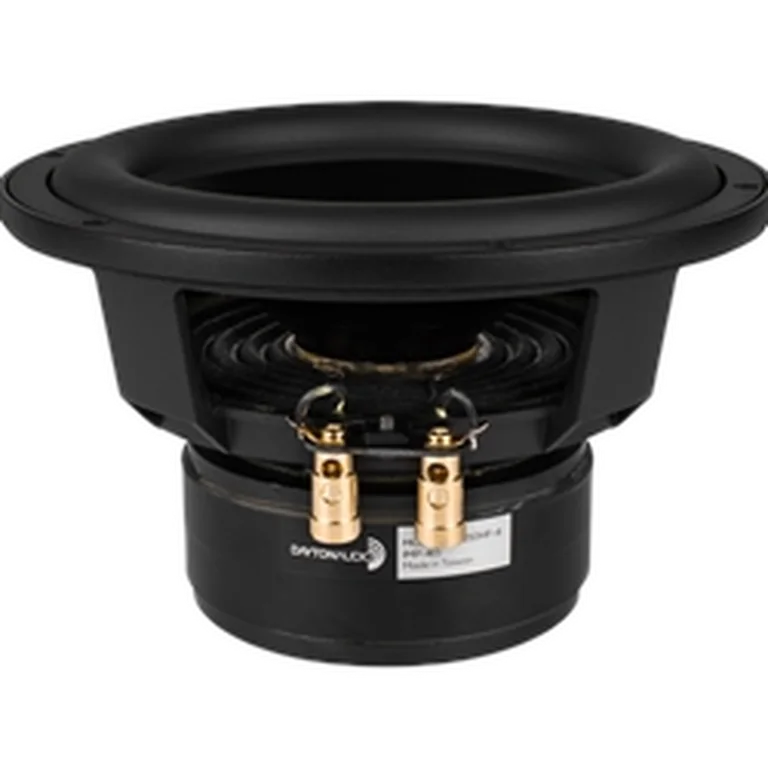

Dayton Audio RSS210HF-4 standard | Fs 30 Hz, 82.7 dB, Qts 0.570 | LoudspeakerLab

Thiele-Small parameters

Fs: 30 Hz; Qts: 0.570; Qes: 0.690; Qms: 3.250; Vas: 23.79 L; Sd: 219.0 cm²; Re: 3.10 Ω; Le: 0.70 mH; Sensitivity: 82.7 dB; Nominal Z: 3.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 82

Usable passband

Scored passband 45 Hz–3.9 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~42.9 L · Fb 24 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $773.79 PLN
• parts_express — $108.78 USD
• solen — $197.12 CAD
• soundimports — $148.72 EUR
• theloudspeakerkit — $329.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (47.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
