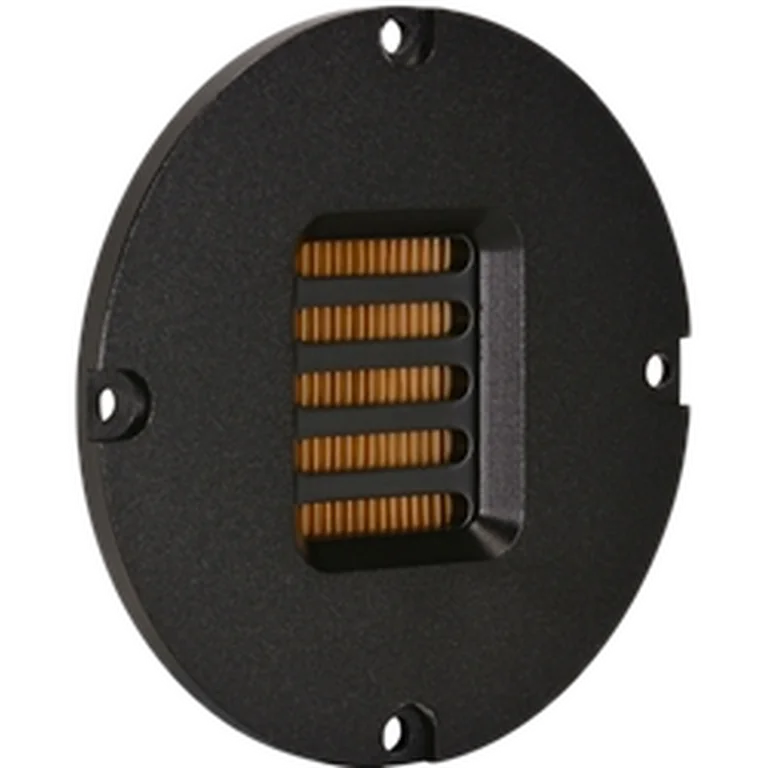

Dayton Audio AMT2-4 standard | Fs 2300 Hz, 92.5 dB, Qts 2.860 | LoudspeakerLab

Thiele-Small parameters

Fs: 2300 Hz; Qts: 2.860; Qms: 2.920; Sd: 8.9 cm²; Re: 3.50 Ω; Sensitivity: 92.5 dB; Nominal Z: 3.3 Ω; Measured range: 5-39794 Hz

Driver quality scores

On-axis flatness 68 · DI tracking 51 · DI smoothness 33

Usable passband

Scored passband 4450 Hz–20.0 kHz

Measurement coverage

Measured profiles · Off-axis H/V response data available.

Measurement profiles

• uploaded measurement (measured)

Where to buy

• blackdotaudio — $337.34 PLN
• parts_express — $63.49 USD
• rumoh — $78.00 EUR
• solen — $90.37 CAD
• soundimports — $74.34 EUR

Measurement quality

LoudspeakerLab evidence grade: B (70.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
