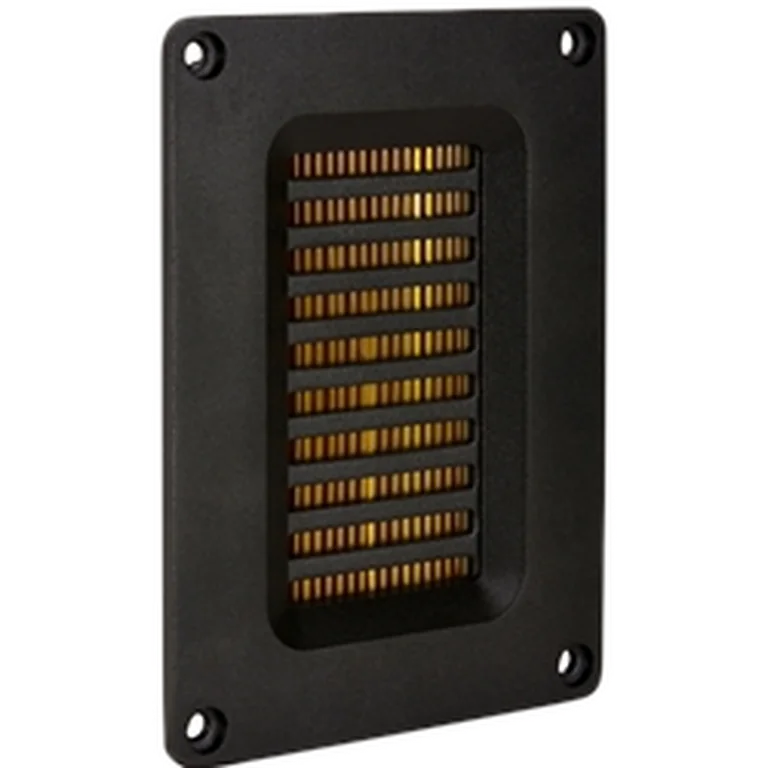

Dayton Audio AMT3-4 standard | Fs 1900 Hz, 93.0 dB, Qts 6.150 | LoudspeakerLab

Thiele-Small parameters

Fs: 1900 Hz; Qts: 6.150; Qes: 223.462; Qms: 6.260; Sd: 32.5 cm²; Re: 3.00 Ω; Sensitivity: 93.0 dB; Nominal Z: 3.7 Ω; Measured range: 1-40000 Hz

Driver quality scores

On-axis flatness 73 · DI tracking 64 · DI smoothness 37

Usable passband

Scored passband 1740 Hz–13.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $472.79 PLN
• parts_express — $83.98 USD
• rumoh — $142.26 EUR
• solen — $143.90 CAD
• soundimports — $107.40 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (55.4/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
