Dayton Audio 8MB200N-8 standard | Fs 94 Hz, 95.5 dB, Qts 0.320 | LoudspeakerLab

Name: Dayton Audio 8MB200N-8 standard | Fs 94 Hz, 95.5 dB, Qts 0.320 | LoudspeakerLab
Brand: Dayton Audio
SKU: 8MB200N-8
Price: 181.78 EUR
Availability: InStock

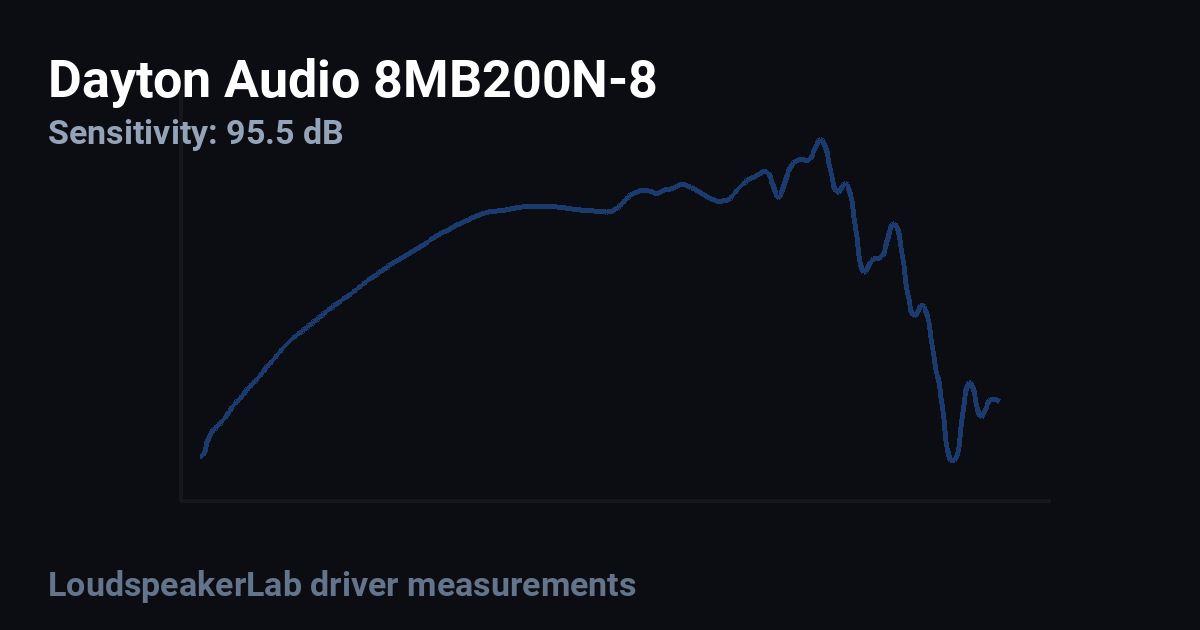

Dayton Audio 8MB200N-8 standard measurements on LoudspeakerLab. 95.5 dB sensitivity. Fs 94 Hz. Qts 0.320. Evidence grade B+ (79.8/100). 1 public design.

Thiele-Small parameters

Fs: 94 Hz; Qts: 0.320; Qes: 0.320; Qms: 4.430; Vas: 0.31 L; Sd: 201.0 cm²; Re: 6.00 Ω; Le: 0.17 mH; Sensitivity: 95.5 dB; Nominal Z: 7.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 64 · DI tracking 57 · DI smoothness 57

Usable passband

Scored passband 143 Hz–3.3 kHz

Measurement coverage

Measured profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~0.2 L · Fb 129 Hz

Measurement profiles

uploaded measurement (measured)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

3 Way 15" with Dayton 8"

Where to buy

soundimports — $181.78 EUR

Measurement quality

LoudspeakerLab evidence grade: B+ (79.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
