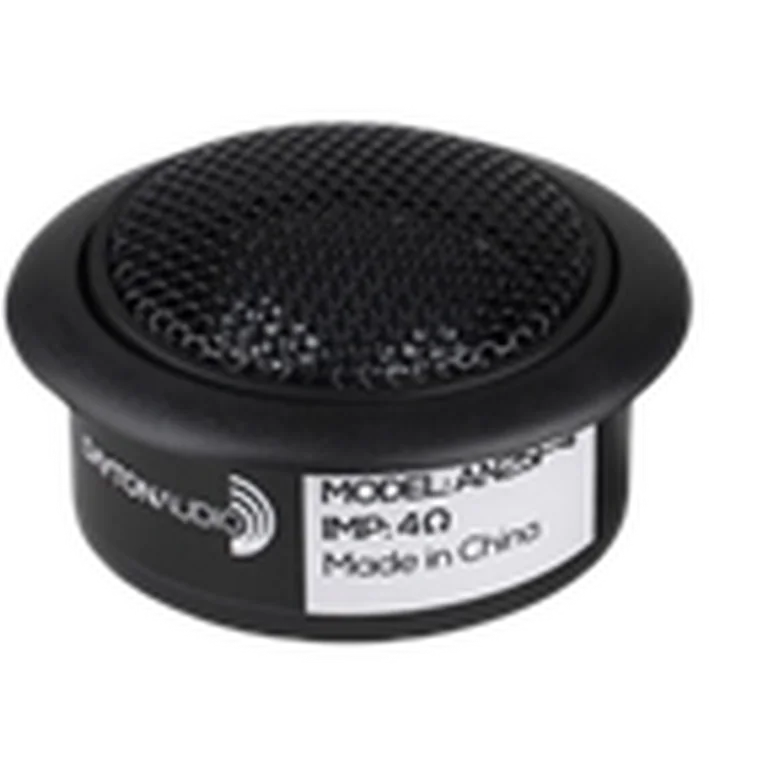

Dayton Audio AN25F-4 standard | Fs 1619 Hz, 97.2 dB, Qts 1.270 | LoudspeakerLab

Thiele-Small parameters

Fs: 1619 Hz; Qts: 1.270; Qes: 1.910; Qms: 3.770; Re: 3.04 Ω; Le: 0.03 mH; Sensitivity: 97.2 dB; Nominal Z: 3.1 Ω; Measured range: 298-20000 Hz

Driver quality scores

On-axis flatness 67 · DI tracking 84 · DI smoothness 54

Usable passband

Scored passband 4140 Hz–15.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $180.39 PLN
• soundimports — $44.17 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (55.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
