Dayton Audio AMTHR-4 standard | Fs 85 Hz, 93.2 dB, Qts 0.520 | LoudspeakerLab

Thiele-Small parameters

Fs: 85 Hz; Qts: 0.520; Qes: 0.653; Qms: 2.548; Re: 2.93 Ω; Sensitivity: 93.2 dB; Nominal Z: 3.3 Ω; Measured range: 10-20000 Hz

Driver quality scores

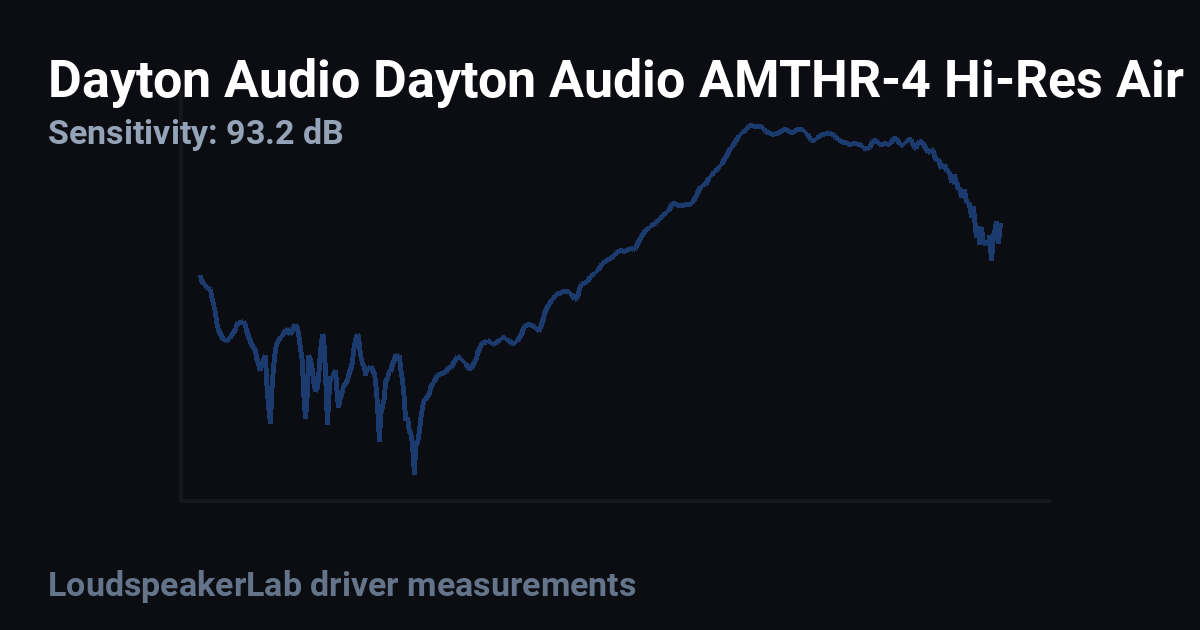

On-axis flatness 66

Usable passband

Scored passband 1897 Hz–11.2 kHz

Measurement coverage

Spec-sheet profiles

Measurement profiles

• IEC baffle (spec_sheet)

Measurement quality

LoudspeakerLab evidence grade: C (44.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

Dayton Audio AMTHR-4 Hi-Res Air Motion Transformer 4 Ohm
