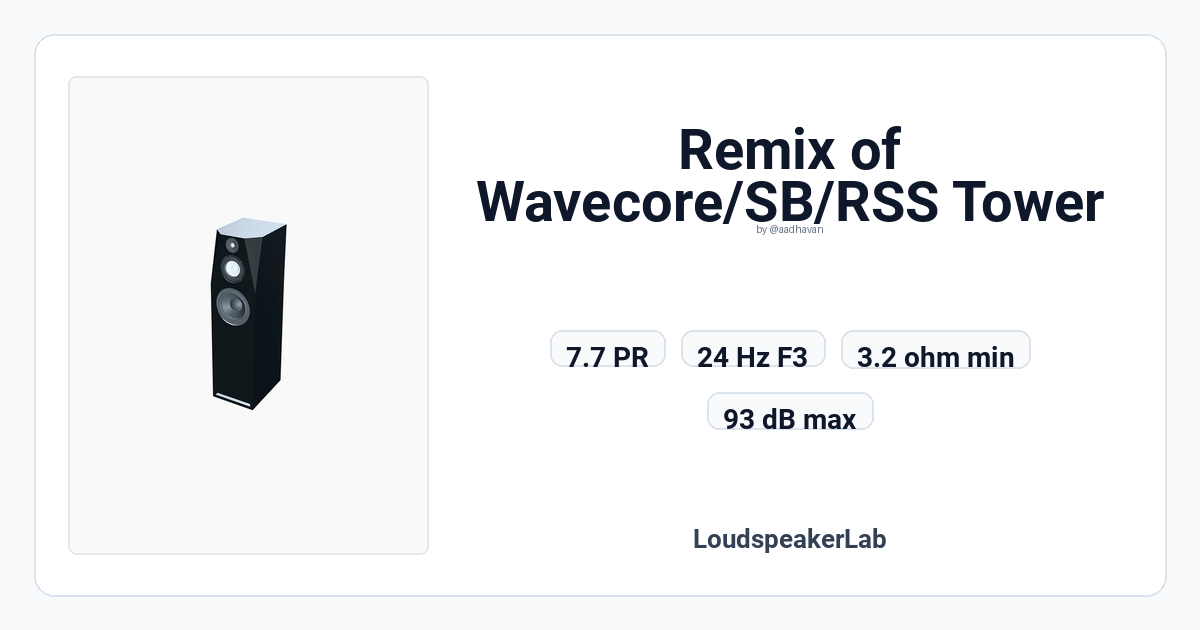

Remix of Wavecore/SB/RSS Tower - LoudspeakerLab Design

Design summary

Preference rating 7.7 · F3 24 Hz · Max SPL 93 dB at 1 kHz · Min impedance 3.2 Ω · Sensitivity 77.7 dB · Estimated cost USD 411

Drivers

• SB Acoustics SB15NBAC30-4 (midrange)
• Wavecor Wavecor TW030WA14 (tweeter)
• Dayton Audio RSS210HF-4 (woofer)

Enclosure

Baffle 272 × 1002 mm
