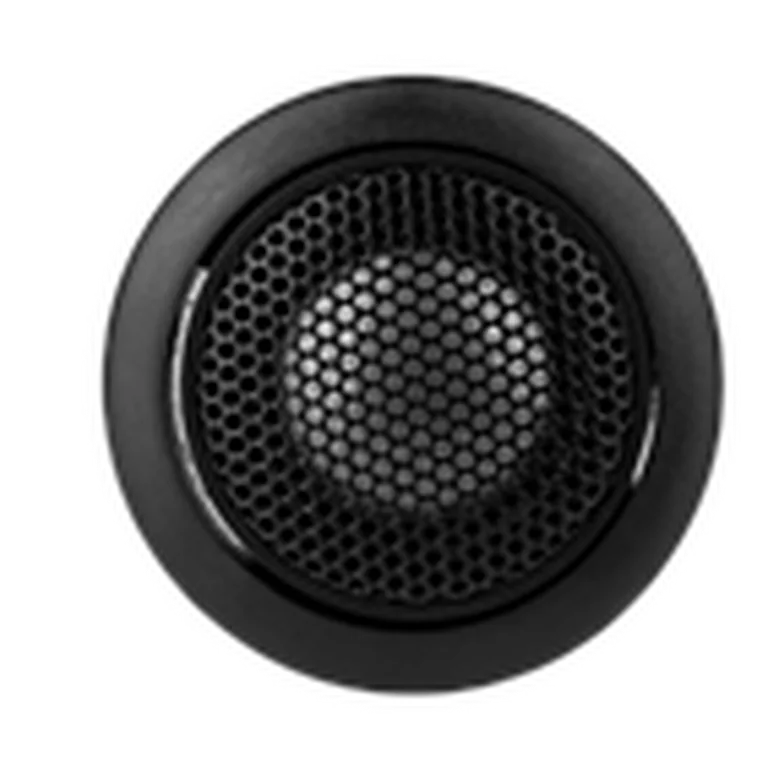

Dayton Audio AN25Ti-4 standard | Fs 1744 Hz, 96.7 dB, Qts 1.300 | LoudspeakerLab

Thiele-Small parameters

Fs: 1744 Hz; Qts: 1.300; Qes: 2.280; Qms: 3.040; Re: 3.11 Ω; Le: 0.03 mH; Sensitivity: 96.7 dB; Nominal Z: 3.1 Ω; Measured range: 298-20000 Hz

Driver quality scores

On-axis flatness 65 · DI tracking 63 · DI smoothness 8

Usable passband

Scored passband 3529 Hz–12.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• soundimports — $49.55 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (55.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
