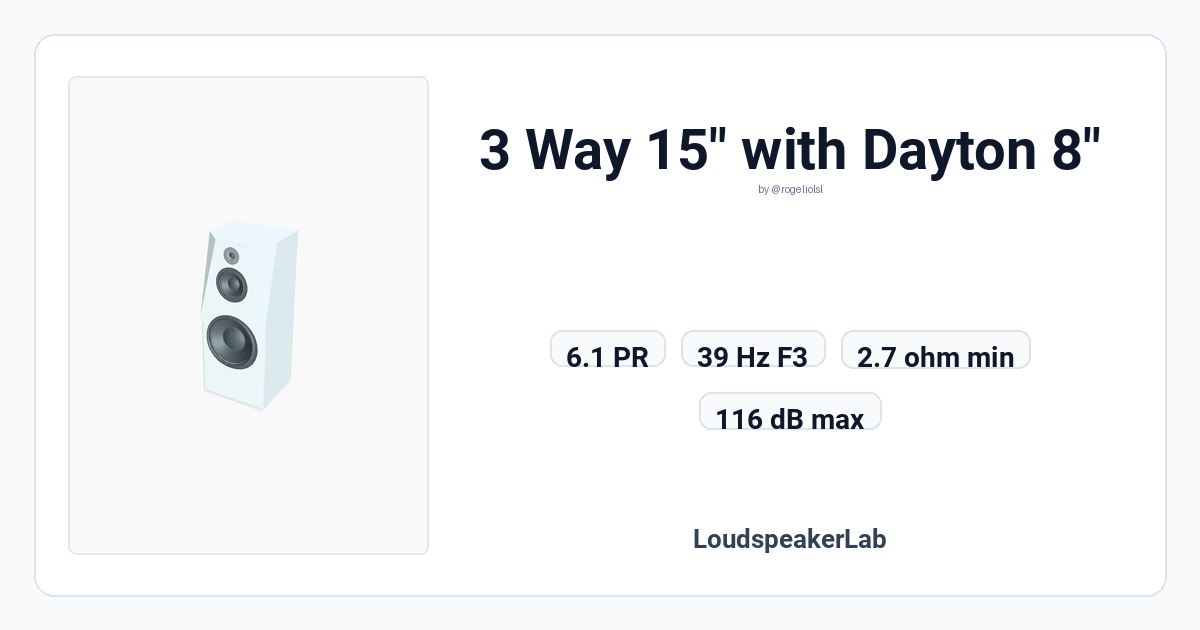

3 Way 15" with Dayton 8" - LoudspeakerLab Design

Design summary

Preference rating 6.1 · F3 39 Hz · Max SPL 116 dB at 1 kHz · Min impedance 2.7 Ω · Sensitivity 84.0 dB · Estimated cost USD 553

Drivers

• Dayton Audio RSS390HO-4 (subwoofer)
• Dayton Audio 8MB200N-8 (midrange)
• SB Acoustics SB26CDC-C000-4 (tweeter)

Enclosure

Baffle 438 × 1024 mm
