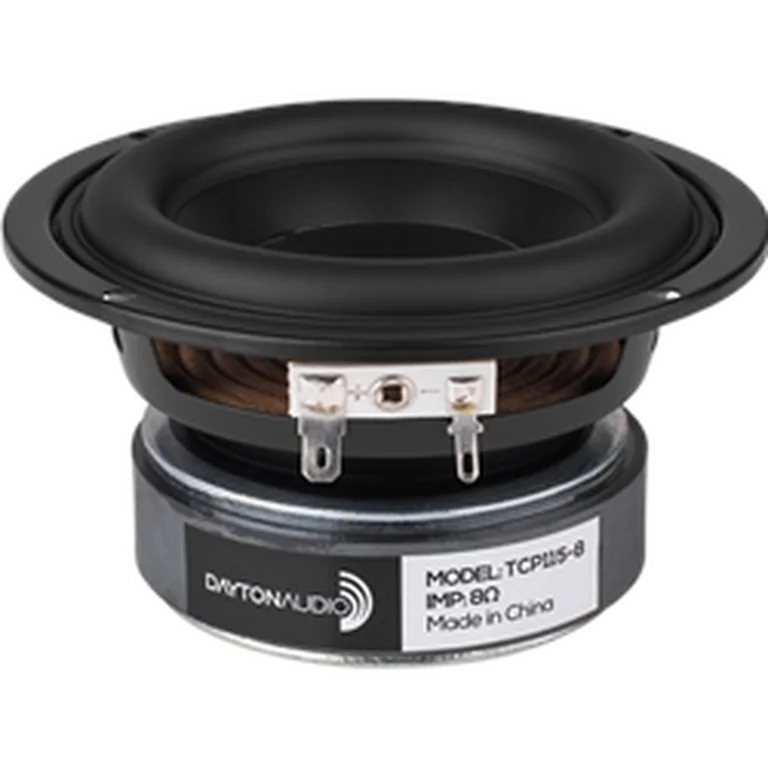

Dayton Audio TCP115-8 standard | Fs 59 Hz, 80.6 dB, Qts 0.430 | LoudspeakerLab

Thiele-Small parameters

Fs: 59 Hz; Qts: 0.430; Qes: 0.540; Qms: 2.300; Vas: 2.52 L; Sd: 50.0 cm²; Re: 7.80 Ω; Le: 1.90 mH; Sensitivity: 80.6 dB; Nominal Z: 8.6 Ω; Measured range: 15-20000 Hz

Driver quality scores

On-axis flatness 73 · DI tracking 76 · DI smoothness 37

Usable passband

Scored passband 90 Hz–3.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~2.4 L · Fb 62 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $72.89 PLN
• parts_express — $15.98 USD
• solen — $27.34 CAD
• soundimports — $14.01 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
