Dayton Audio SS8-22 standard | Fs 38 Hz, 83.1 dB, Qts 0.450 | LoudspeakerLab

Dayton Audio SS8-22 standard measurements on LoudspeakerLab. 83.1 dB sensitivity. Fs 38 Hz. Qts 0.450. Evidence grade C+ (56.8/100).

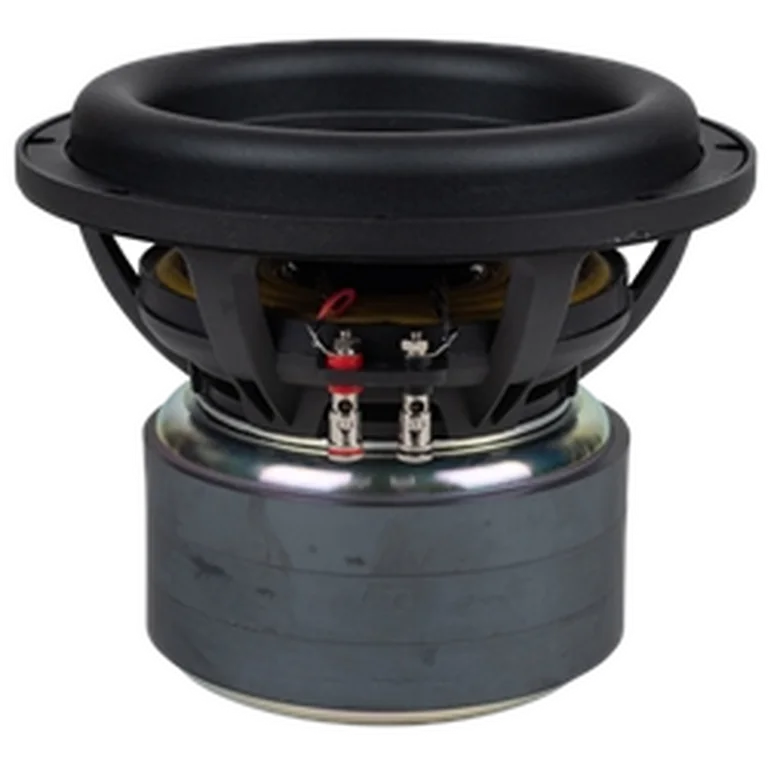

Preview

Thiele-Small parameters

Fs: 38 Hz; Qts: 0.450; Qes: 0.500; Qms: 4.370; Vas: 9.70 L; Sd: 200.0 cm²; Re: 4.40 Ω; Le: 1.60 mH; Sensitivity: 83.1 dB; Nominal Z: 5.9 Ω; Measured range: 5-40000 Hz

Driver quality scores

On-axis flatness 58 · DI tracking 93 · DI smoothness 73

Usable passband

Scored passband 57 Hz–615 Hz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~10.1 L · Fb 38 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
