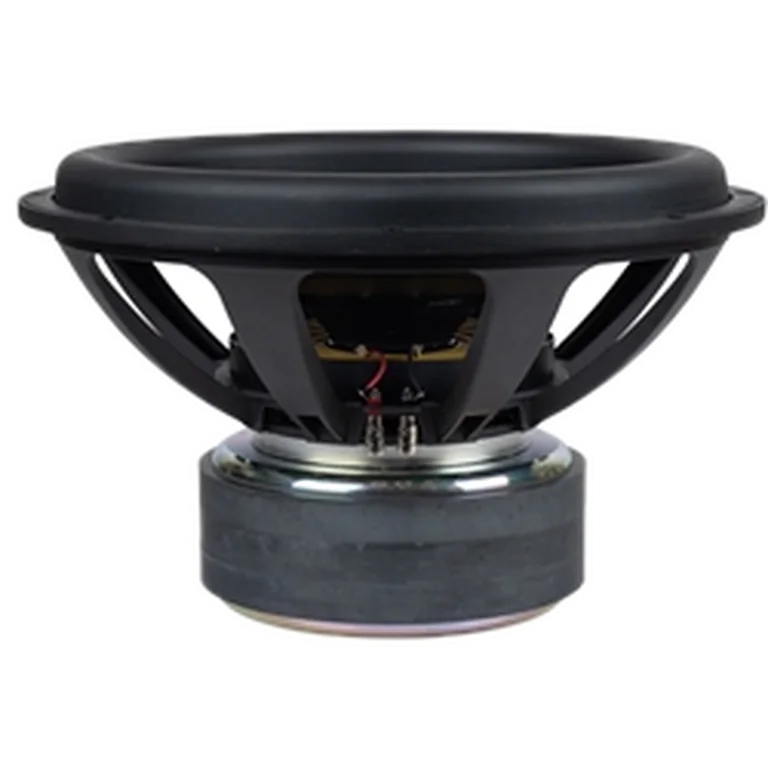

Dayton Audio SS18-22 standard | Fs 21 Hz, 89.5 dB, Qts 0.370 | LoudspeakerLab

Thiele-Small parameters

Fs: 21 Hz; Qts: 0.370; Qes: 0.420; Qms: 3.400; Vas: 224.00 L; Sd: 1188.0 cm²; Re: 5.40 Ω; Le: 2.10 mH; Sensitivity: 89.5 dB; Nominal Z: 6.6 Ω; Measured range: 5-40000 Hz

Driver quality scores

On-axis flatness 58 · DI tracking 61 · DI smoothness 72

Usable passband

Scored passband 32 Hz–1.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~152.6 L · Fb 25 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $399.98 USD
• solen — $563.57 CAD
• soundimports — $471.03 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
