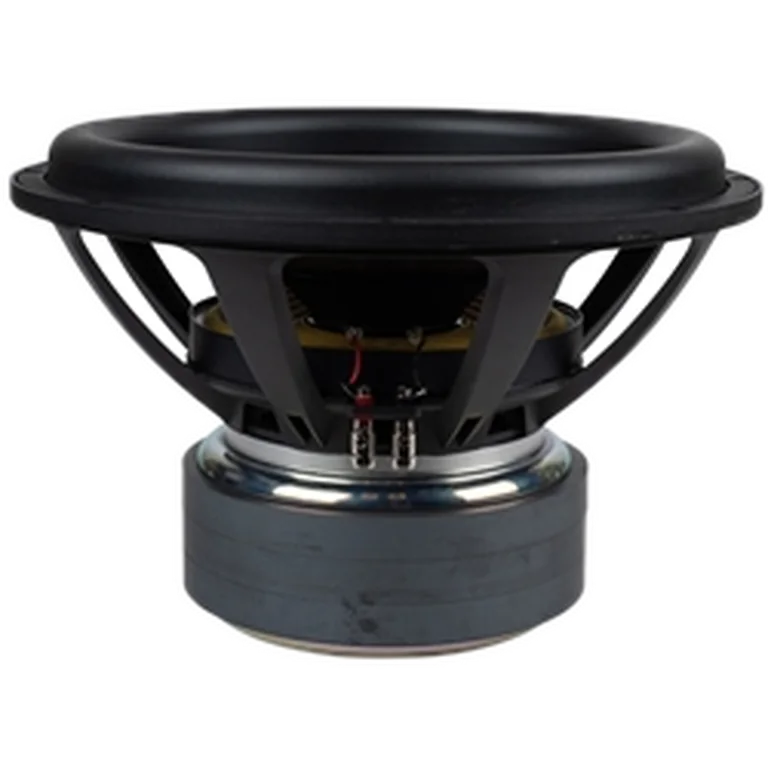

Dayton Audio SS15-22 standard | Fs 27 Hz, 89.2 dB, Qts 0.380 | LoudspeakerLab

Thiele-Small parameters

Fs: 27 Hz; Qts: 0.380; Qes: 0.440; Qms: 3.270; Vas: 98.00 L; Sd: 800.0 cm²; Re: 5.00 Ω; Le: 1.90 mH; Sensitivity: 89.2 dB; Nominal Z: 6.5 Ω; Measured range: 5-40000 Hz

Driver quality scores

On-axis flatness 48 · DI tracking 60 · DI smoothness 72

Usable passband

Scored passband 41 Hz–1.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~70.4 L · Fb 32 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $319.98 USD
• solen — $448.43 CAD
• soundimports — $363.60 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
