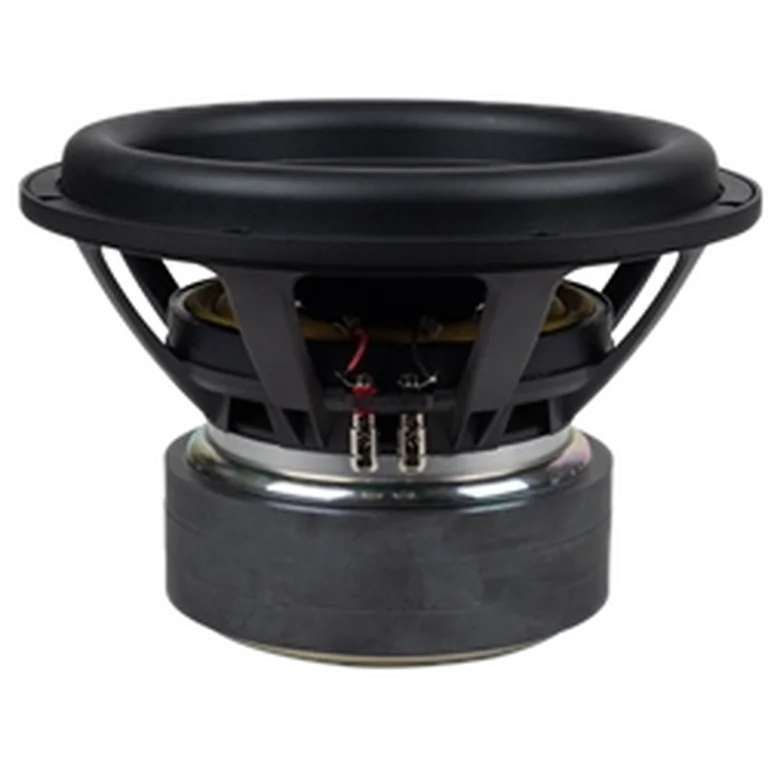

Dayton Audio SS12-22 standard | Fs 27 Hz, 86.4 dB, Qts 0.350 | LoudspeakerLab

Thiele-Small parameters

Fs: 27 Hz; Qts: 0.350; Qes: 0.390; Qms: 3.470; Vas: 49.40 L; Sd: 528.0 cm²; Re: 4.90 Ω; Le: 1.80 mH; Sensitivity: 86.4 dB; Nominal Z: 6.6 Ω; Measured range: 5-40000 Hz

Driver quality scores

On-axis flatness 63 · DI tracking 100 · DI smoothness 100

Usable passband

Scored passband 41 Hz–509 Hz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~30.5 L · Fb 34 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $249.98 USD
• solen — $350.33 CAD
• soundimports — $289.21 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
