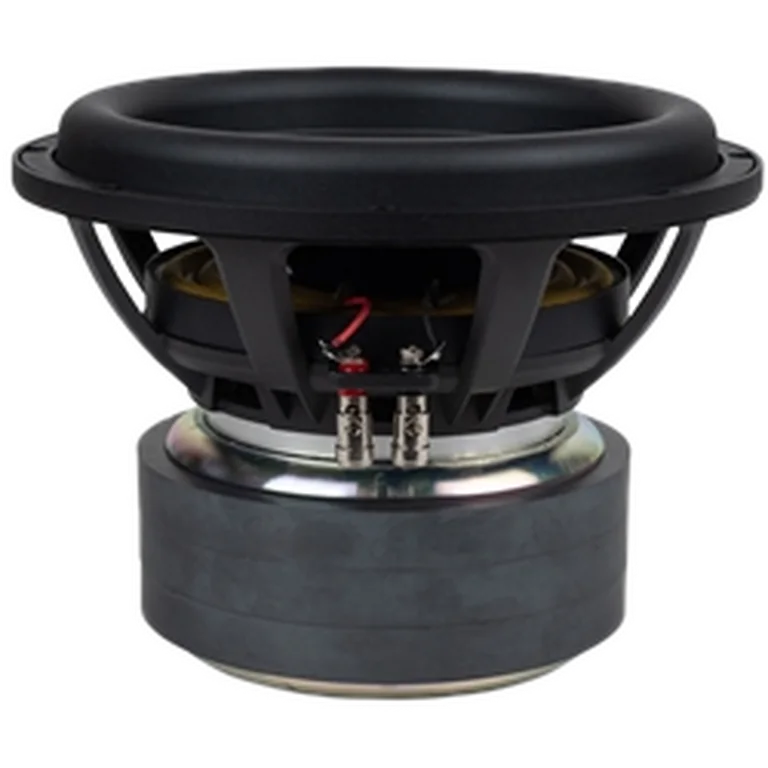

Dayton Audio SS10-22 standard | Fs 34 Hz, 85.8 dB, Qts 0.400 | LoudspeakerLab

Thiele-Small parameters

Fs: 34 Hz; Qts: 0.400; Qes: 0.450; Qms: 3.800; Vas: 20.60 L; Sd: 344.5 cm²; Re: 4.40 Ω; Le: 1.60 mH; Sensitivity: 85.8 dB; Nominal Z: 6.0 Ω; Measured range: 5-40000 Hz

Driver quality scores

On-axis flatness 47 · DI tracking 97 · DI smoothness 87

Usable passband

Scored passband 50 Hz–540 Hz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~16.6 L · Fb 38 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $199.98 USD
• solen — $280.26 CAD
• soundimports — $231.36 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
