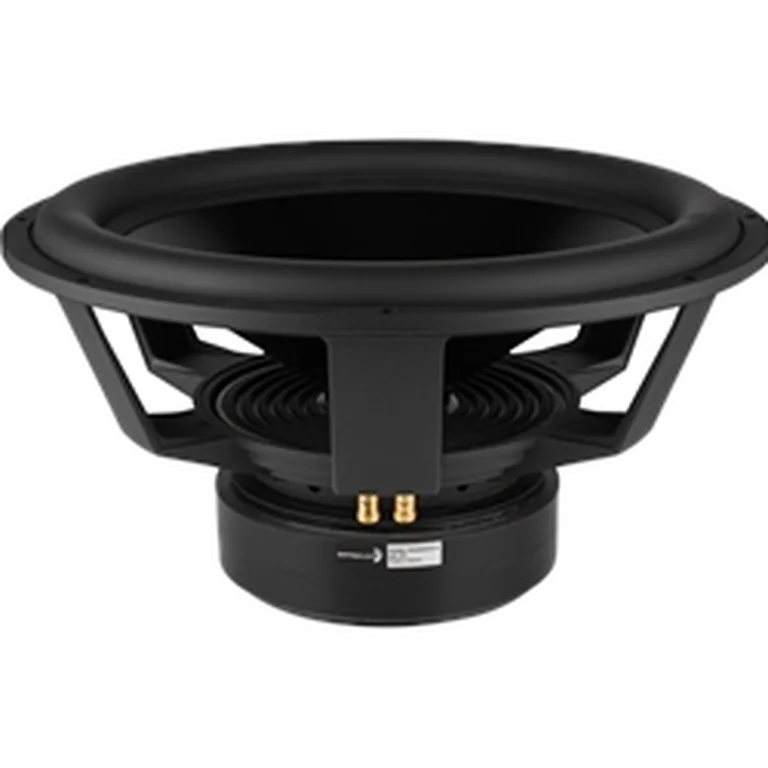

Dayton Audio RSS460HO-4 standard | Fs 19 Hz, 86.8 dB, Qts 0.320 | LoudspeakerLab

Thiele-Small parameters

Fs: 19 Hz; Qts: 0.320; Qes: 0.350; Qms: 4.050; Vas: 272.00 L; Sd: 1164.0 cm²; Re: 3.20 Ω; Le: 2.24 mH; Sensitivity: 86.8 dB; Nominal Z: 4.8 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 61

Usable passband

Scored passband 28 Hz–1.6 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~140.8 L · Fb 26 Hz

Measurement profiles

• spec sheet (spec_sheet)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

• 2x18" Dayton Reference Sub

Where to buy

• blackdotaudio — $2407.79 PLN
• parts_express — $335.98 USD
• solen — $509.00 CAD
• soundimports — $462.77 EUR
• theloudspeakerkit — $975.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
