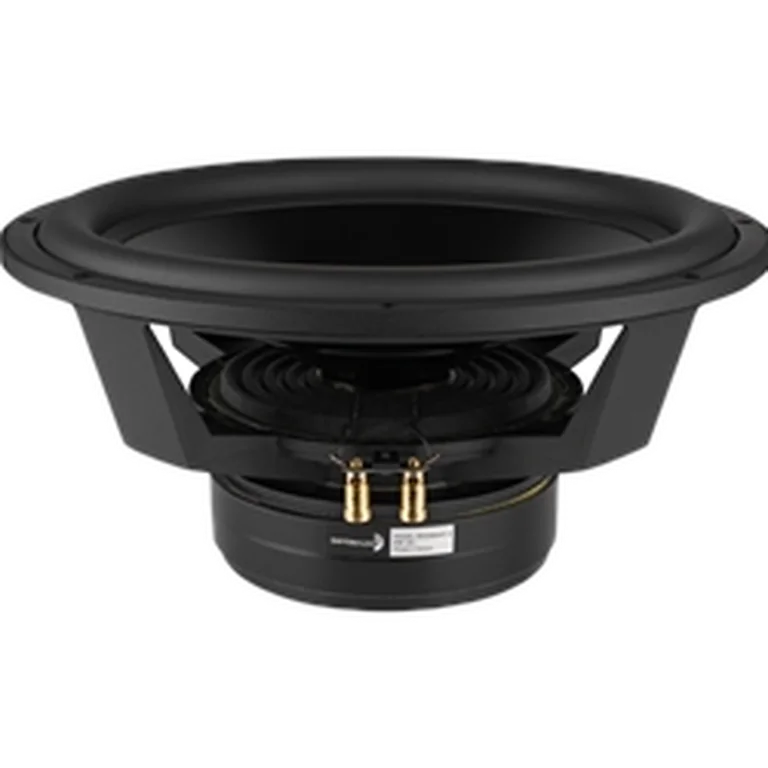

Dayton Audio RSS390HF-4 standard | Fs 20 Hz, 90.0 dB, Qts 0.430 | LoudspeakerLab

Thiele-Small parameters

Fs: 20 Hz; Qts: 0.430; Qes: 0.500; Qms: 3.020; Vas: 212.00 L; Sd: 829.6 cm²; Re: 3.00 Ω; Le: 0.92 mH; Sensitivity: 90.0 dB; Nominal Z: 3.5 Ω; Measured range: 20-19670 Hz

Driver quality scores

On-axis flatness 57

Usable passband

Scored passband 30 Hz–2.5 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~197.8 L · Fb 20 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $1676.79 PLN
• parts_express — $231.98 USD
• solen — $419.73 CAD
• soundimports — $322.27 EUR
• theloudspeakerkit — $779.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
