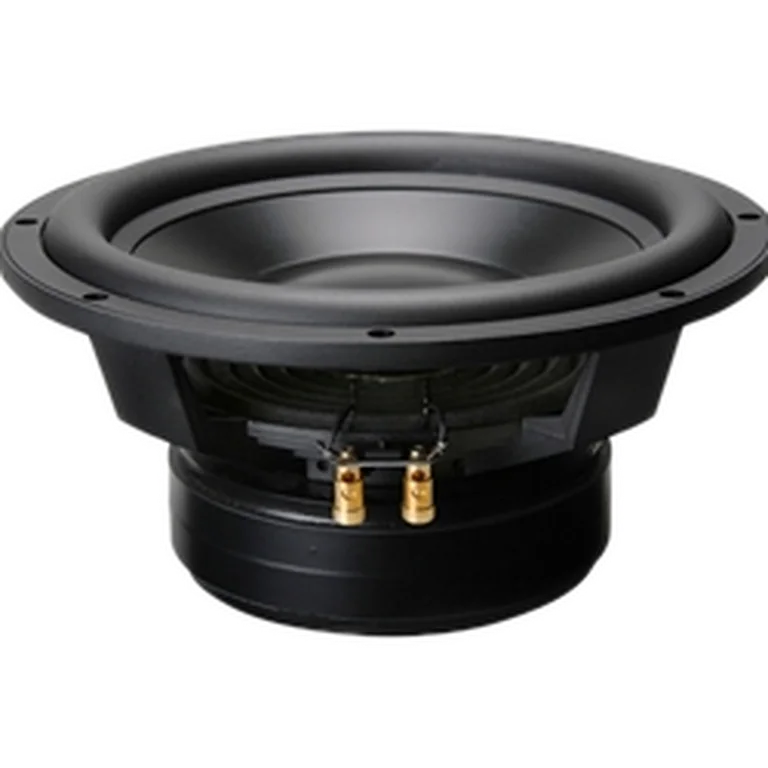

Dayton Audio RSS315HO-44 standard | Fs 22 Hz, 79.8 dB, Qts 0.370 | LoudspeakerLab

Thiele-Small parameters

Fs: 22 Hz; Qts: 0.370; Qes: 0.410; Qms: 3.700; Vas: 61.30 L; Sd: 507.1 cm²; Re: 6.50 Ω; Le: 3.17 mH; Sensitivity: 79.8 dB; Nominal Z: 8.4 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 44

Usable passband

Scored passband 33 Hz–1.6 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~41.8 L · Fb 26 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $1418.79 PLN
• parts_express — $207.98 USD
• parts_express — $144.00 USD
• soundimports — $272.69 EUR

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
