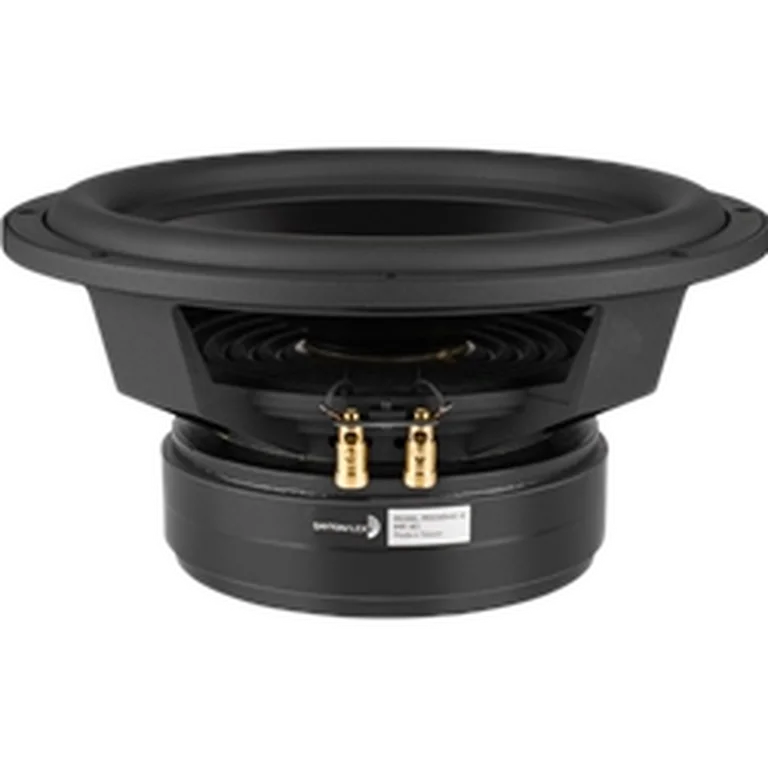

Dayton Audio RSS315HO-4 standard | Fs 26 Hz, 85.0 dB, Qts 0.310 | LoudspeakerLab

Thiele-Small parameters

Fs: 26 Hz; Qts: 0.310; Qes: 0.330; Qms: 3.630; Vas: 53.70 L; Sd: 514.7 cm²; Re: 3.20 Ω; Le: 1.75 mH; Sensitivity: 85.0 dB; Nominal Z: 4.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 72

Usable passband

Scored passband 39 Hz–1.7 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~26.4 L · Fb 37 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $1547.79 PLN
• parts_express — $207.98 USD
• solen — $333.97 CAD
• soundimports — $297.48 EUR
• theloudspeakerkit — $549.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
