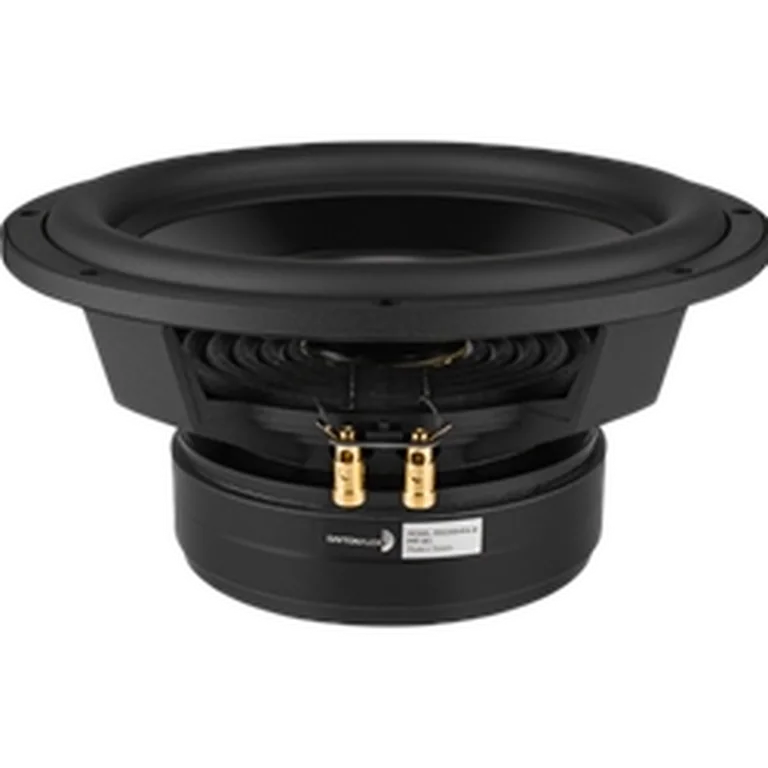

Dayton Audio RSS315HFA-8 standard | Fs 22 Hz, 86.0 dB, Qts 0.450 | LoudspeakerLab

Thiele-Small parameters

Fs: 22 Hz; Qts: 0.450; Qes: 0.540; Qms: 2.500; Vas: 97.20 L; Sd: 506.7 cm²; Re: 6.50 Ω; Le: 1.56 mH; Sensitivity: 86.0 dB; Nominal Z: 7.4 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 72

Usable passband

Scored passband 33 Hz–1.5 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~101.2 L · Fb 22 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $1354.29 PLN
• parts_express — $191.98 USD
• solen — $342.82 CAD
• soundimports — $260.29 EUR
• theloudspeakerkit — $595.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
