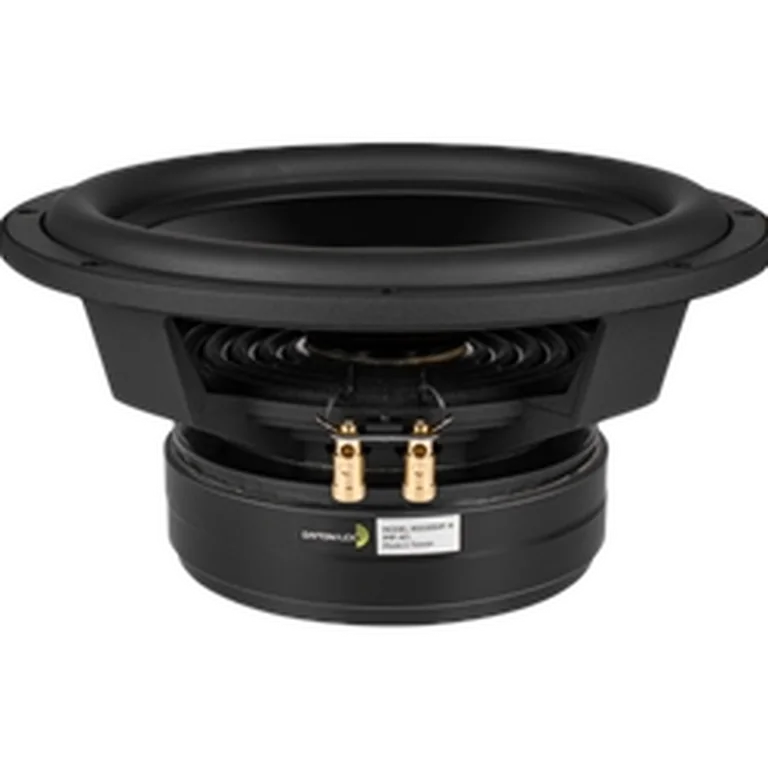

Dayton Audio RSS315HF-4 standard | Fs 24 Hz, 86.7 dB, Qts 0.390 | LoudspeakerLab

Thiele-Small parameters

Fs: 24 Hz; Qts: 0.390; Qes: 0.450; Qms: 2.830; Vas: 84.10 L; Sd: 514.7 cm²; Re: 3.10 Ω; Le: 0.96 mH; Sensitivity: 86.7 dB; Nominal Z: 3.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 68

Usable passband

Scored passband 36 Hz–1.5 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~63.9 L · Fb 28 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $1289.79 PLN
• parts_express — $191.98 USD
• solen — $346.44 CAD
• soundimports — $247.89 EUR
• theloudspeakerkit — $579.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
