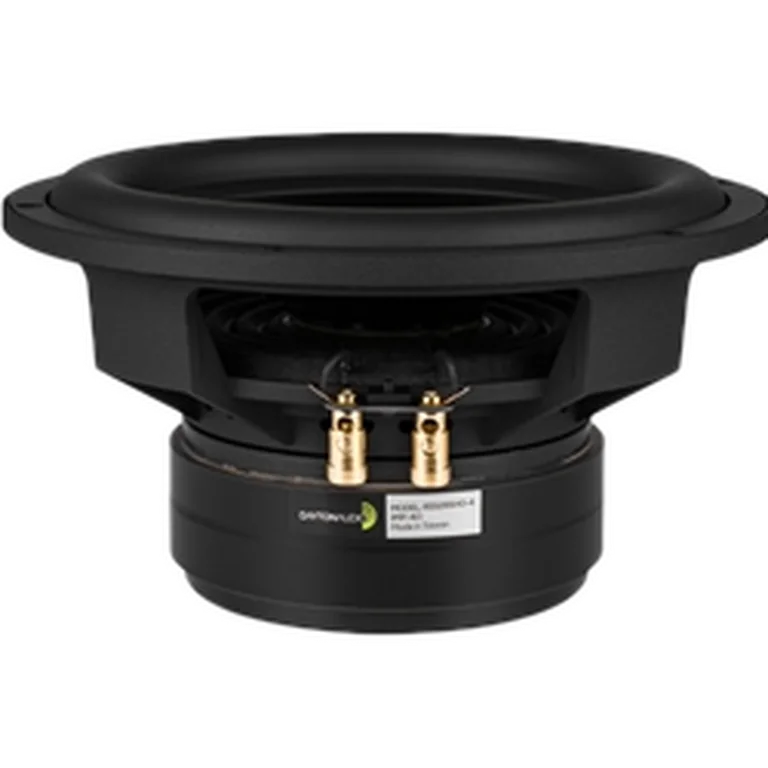

Dayton Audio RSS265HO-4 standard | Fs 27 Hz, 82.3 dB, Qts 0.350 | LoudspeakerLab

Thiele-Small parameters

Fs: 27 Hz; Qts: 0.350; Qes: 0.390; Qms: 4.020; Vas: 29.40 L; Sd: 349.7 cm²; Re: 3.50 Ω; Le: 1.74 mH; Sensitivity: 82.3 dB; Nominal Z: 4.9 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 63

Usable passband

Scored passband 41 Hz–2.3 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~18.1 L · Fb 34 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $1289.79 PLN
• parts_express — $172.78 USD
• solen — $299.88 CAD
• soundimports — $247.89 EUR
• theloudspeakerkit — $479.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
