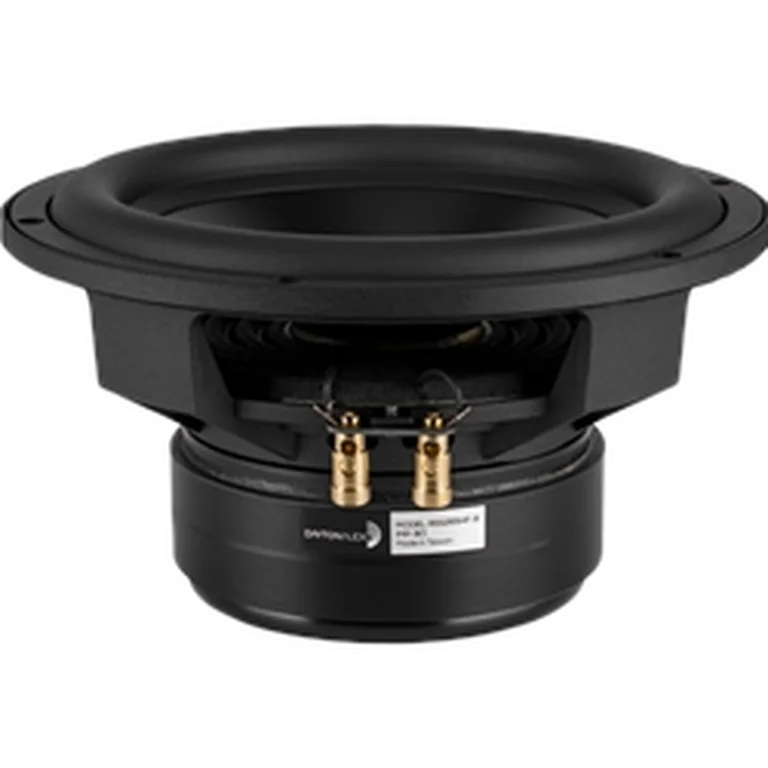

Dayton Audio RSS265HF-8 standard | Fs 25 Hz, 82.8 dB, Qts 0.490 | LoudspeakerLab

Thiele-Small parameters

Fs: 25 Hz; Qts: 0.490; Qes: 0.590; Qms: 2.680; Vas: 52.50 L; Sd: 346.4 cm²; Re: 6.50 Ω; Le: 1.57 mH; Sensitivity: 82.8 dB; Nominal Z: 7.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 67

Usable passband

Scored passband 38 Hz–2.1 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~66.3 L · Fb 23 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $1117.79 PLN
• parts_express — $159.98 USD
• solen — $272.35 CAD
• soundimports — $214.83 EUR
• theloudspeakerkit — $499.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
