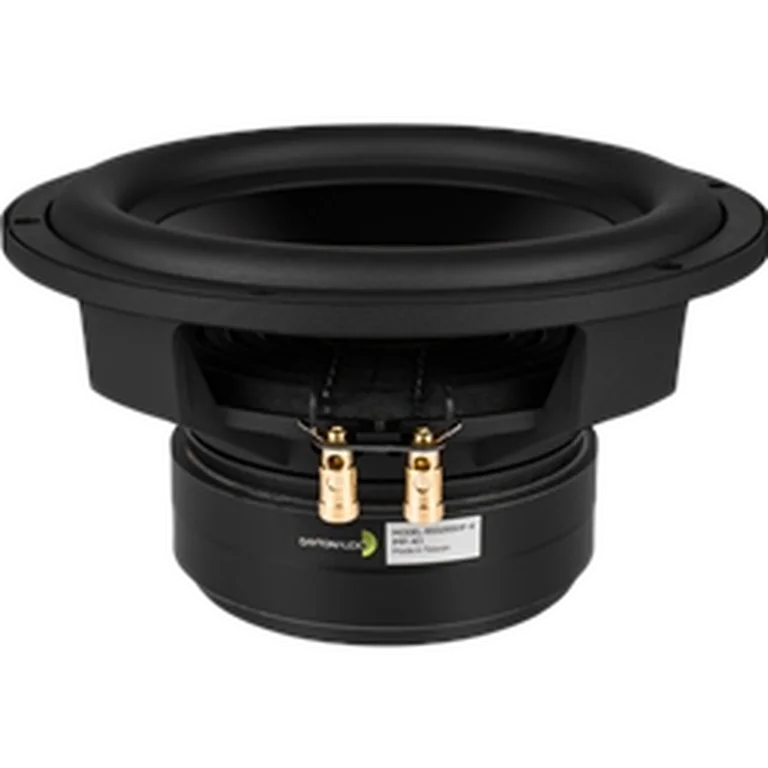

Dayton Audio RSS265HF-4 standard | Fs 26 Hz, 84.6 dB, Qts 0.450 | LoudspeakerLab

Thiele-Small parameters

Fs: 26 Hz; Qts: 0.450; Qes: 0.530; Qms: 3.060; Vas: 54.00 L; Sd: 356.3 cm²; Re: 3.50 Ω; Le: 0.96 mH; Sensitivity: 84.6 dB; Nominal Z: 4.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 64

Usable passband

Scored passband 38 Hz–2.0 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~56.2 L · Fb 26 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $1117.79 PLN
• parts_express — $159.98 USD
• solen — $290.81 CAD
• soundimports — $214.83 EUR
• theloudspeakerkit — $499.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
