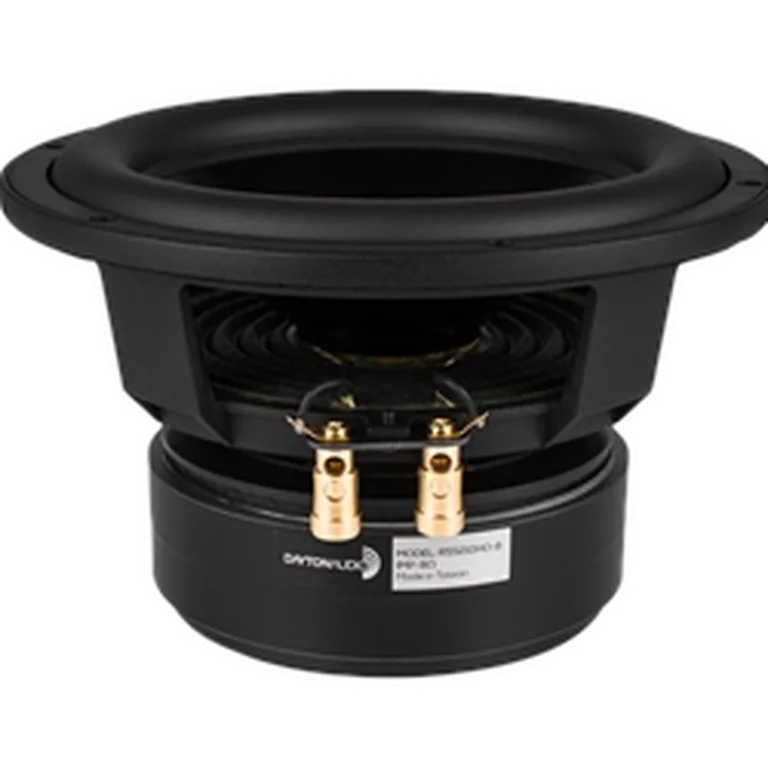

Dayton Audio RSS210HO-8 standard | Fs 30 Hz, 80.3 dB, Qts 0.388 | LoudspeakerLab

Thiele-Small parameters

Fs: 30 Hz; Qts: 0.388; Qes: 0.452; Qms: 2.780; Vas: 18.70 L; Sd: 213.8 cm²; Re: 5.92 Ω; Le: 1.46 mH; Sensitivity: 80.3 dB; Nominal Z: 7.4 Ω; Measured range: 20-19670 Hz

Driver quality scores

On-axis flatness 62

Usable passband

Scored passband 45 Hz–4.4 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~14.0 L · Fb 34 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $859.79 PLN
• parts_express — $119.98 USD
• solen — $223.20 CAD
• soundimports — $165.25 EUR
• theloudspeakerkit — $395.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
