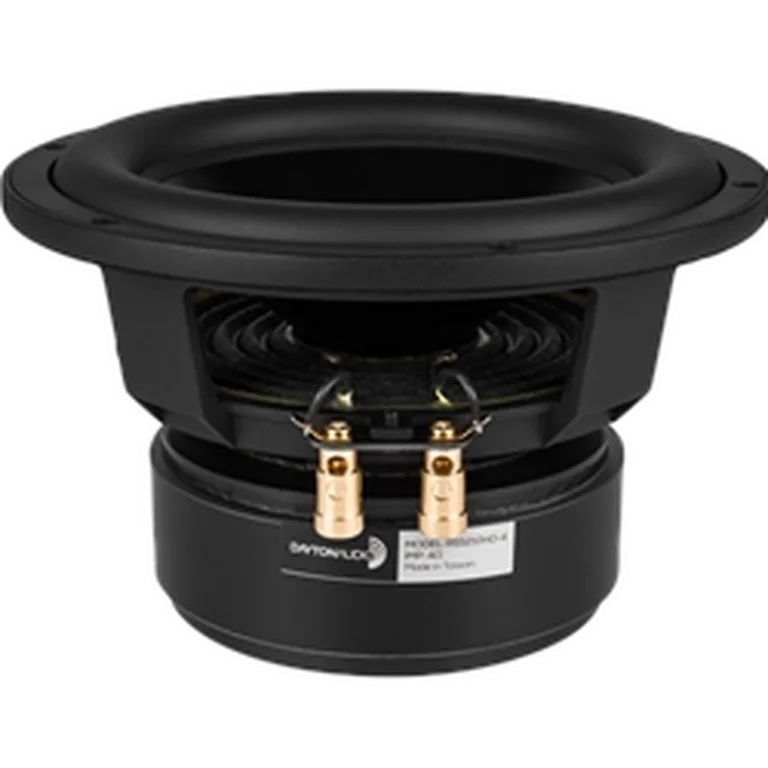

Dayton Audio RSS210HO-4 standard | Fs 30 Hz, 82.7 dB, Qts 0.400 | LoudspeakerLab

Thiele-Small parameters

Fs: 30 Hz; Qts: 0.400; Qes: 0.460; Qms: 3.330; Vas: 18.70 L; Sd: 213.8 cm²; Re: 3.60 Ω; Le: 0.99 mH; Sensitivity: 82.7 dB; Nominal Z: 4.4 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 65

Usable passband

Scored passband 44 Hz–4.2 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~15.1 L · Fb 33 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $902.79 PLN
• parts_express — $119.98 USD
• solen — $223.20 CAD
• soundimports — $173.51 EUR
• theloudspeakerkit — $369.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
