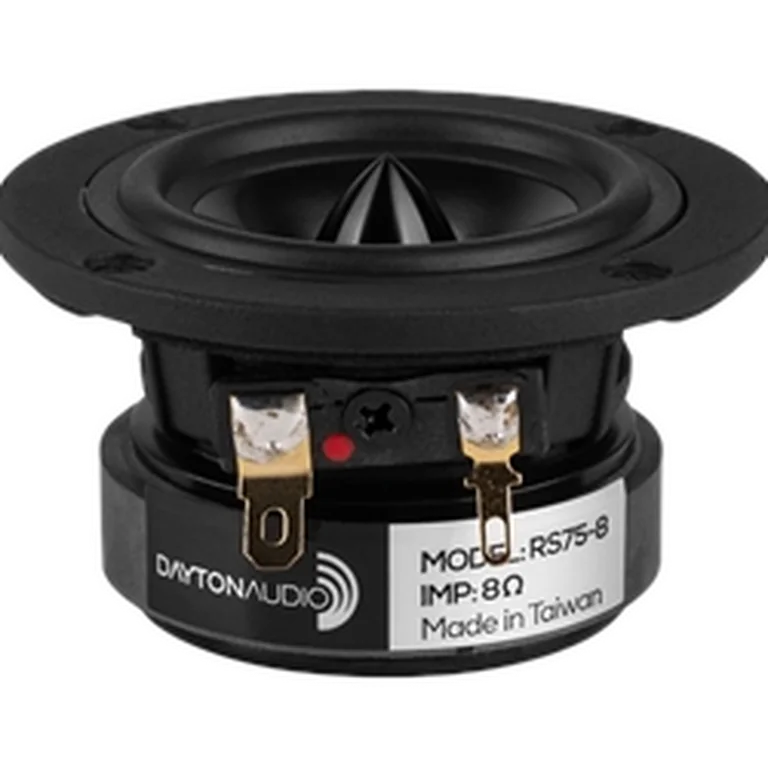

Dayton Audio RS75-8 standard | Fs 178 Hz, 81.5 dB, Qts 0.830 | LoudspeakerLab

Thiele-Small parameters

Fs: 178 Hz; Qts: 0.830; Qes: 0.969; Qms: 5.759; Vas: 0.14 L; Sd: 11.9 cm²; Re: 3.14 Ω; Le: 0.18 mH; Sensitivity: 81.5 dB; Nominal Z: 3.3 Ω; Measured range: 10-20000 Hz

Driver quality scores

On-axis flatness 74 · DI tracking 68 · DI smoothness 15

Usable passband

Scored passband 1004 Hz–6.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~0.3 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $165.34 PLN
• parts_express — $25.58 USD
• rumoh — $38.40 EUR
• solen — $46.64 CAD
• soundimports — $31.78 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
