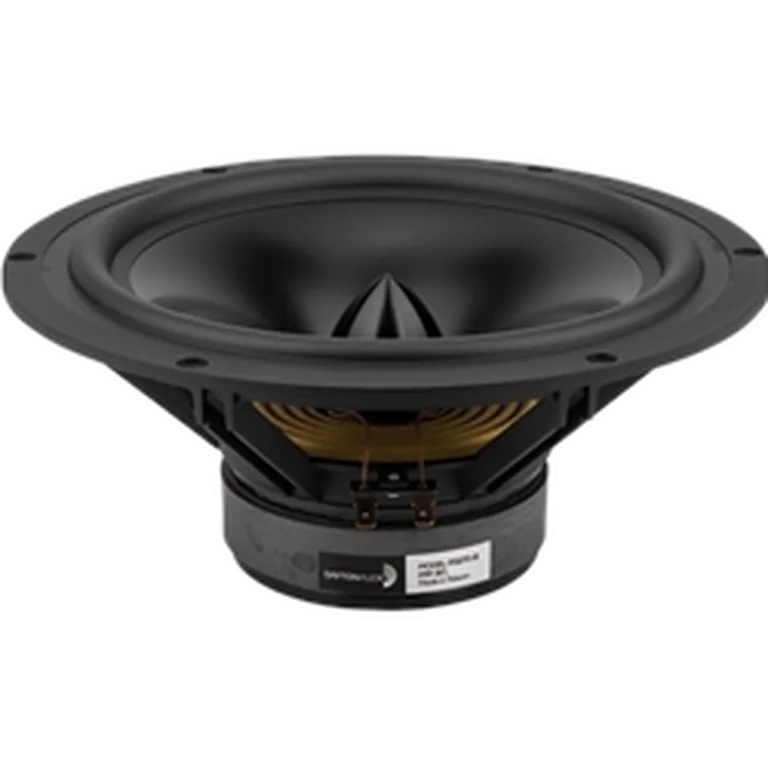

Dayton Audio RS270-8 standard | Fs 30 Hz, 86.6 dB, Qts 0.470 | LoudspeakerLab

Thiele-Small parameters

Fs: 30 Hz; Qts: 0.470; Qes: 0.610; Qms: 2.080; Vas: 96.50 L; Sd: 346.4 cm²; Re: 6.80 Ω; Le: 0.93 mH; Sensitivity: 86.6 dB; Nominal Z: 7.3 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 66 · DI tracking 81 · DI smoothness 54

Usable passband

Scored passband 57 Hz–1.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~110.2 L · Fb 28 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $730.79 PLN
• parts_express — $111.98 USD
• rumoh — $169.00 EUR
• solen — $191.71 CAD
• soundimports — $153.26 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
