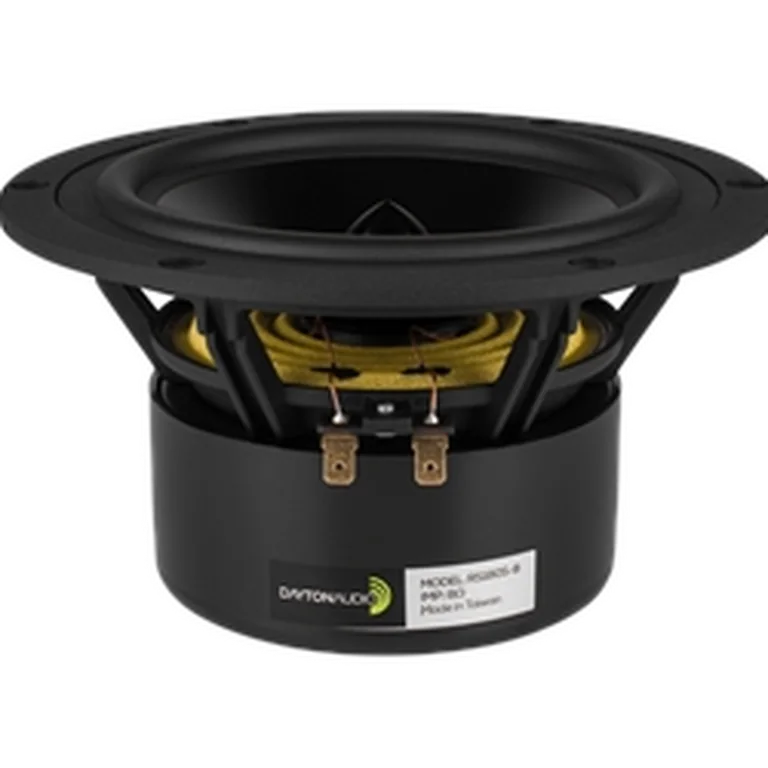

Dayton Audio RS180S-8 standard | Fs 38 Hz, 87.7 dB, Qts 0.360 | LoudspeakerLab

Thiele-Small parameters

Fs: 38 Hz; Qts: 0.360; Qes: 0.490; Qms: 1.450; Vas: 23.00 L; Sd: 124.7 cm²; Re: 6.40 Ω; Le: 0.79 mH; Sensitivity: 87.7 dB; Nominal Z: 6.9 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 62 · DI tracking 70 · DI smoothness 48

Usable passband

Scored passband 64 Hz–3.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~14.9 L · Fb 46 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $63.98 USD
• rumoh — $93.90 EUR
• soundimports — $99.13 EUR
• theloudspeakerkit — $179.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
