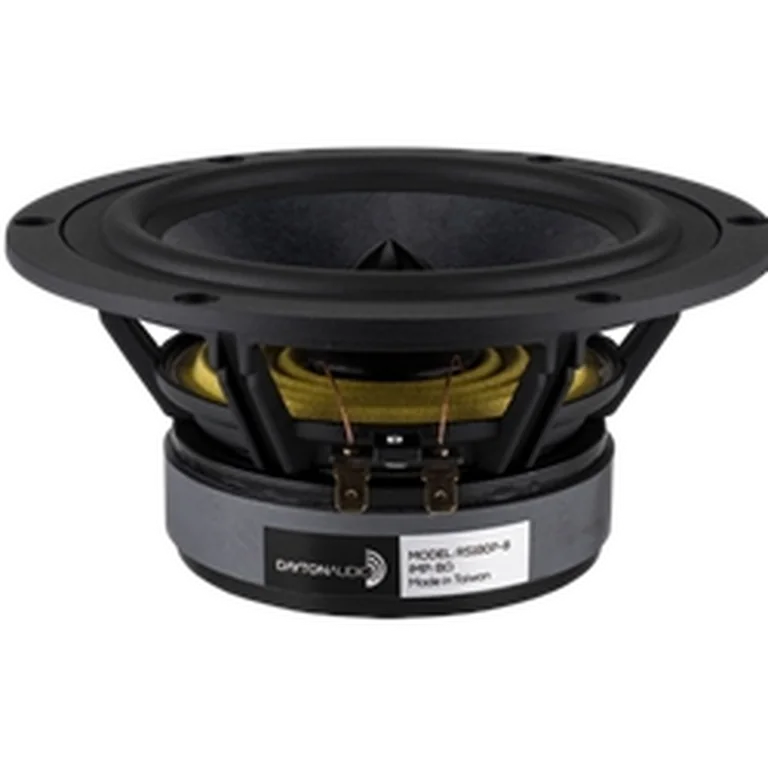

Dayton Audio RS180P-8 standard | Fs 46 Hz, 88.1 dB, Qts 0.340 | LoudspeakerLab

Thiele-Small parameters

Fs: 46 Hz; Qts: 0.340; Qes: 0.440; Qms: 1.490; Vas: 22.00 L; Sd: 126.7 cm²; Re: 6.30 Ω; Le: 0.84 mH; Sensitivity: 88.1 dB; Nominal Z: 6.9 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 72 · DI tracking 64 · DI smoothness 63

Usable passband

Scored passband 67 Hz–3.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~12.8 L · Fb 59 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• solen — $104.58 CAD
• soundimports — $70.21 EUR
• theloudspeakerkit — $159.00 AUD
• parts_express — $57.58 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
