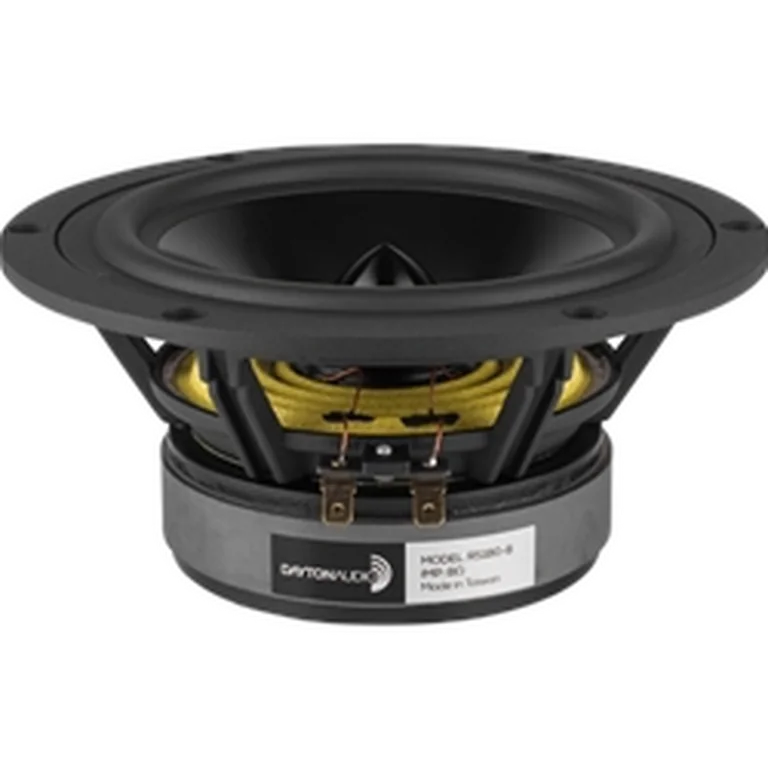

Dayton Audio RS180-8 standard | Fs 36 Hz, 88.6 dB, Qts 0.310 | LoudspeakerLab

Thiele-Small parameters

Fs: 36 Hz; Qts: 0.310; Qes: 0.420; Qms: 1.220; Vas: 24.40 L; Sd: 124.7 cm²; Re: 6.40 Ω; Le: 0.73 mH; Sensitivity: 88.6 dB; Nominal Z: 6.8 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 60 · DI tracking 77 · DI smoothness 54

Usable passband

Scored passband 66 Hz–3.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~12.0 L · Fb 50 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• daytonaudio — $94.99 USD
• parts_express — $58.38 USD
• solen — $99.12 CAD
• soundimports — $71.45 EUR
• theloudspeakerkit — $179.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
