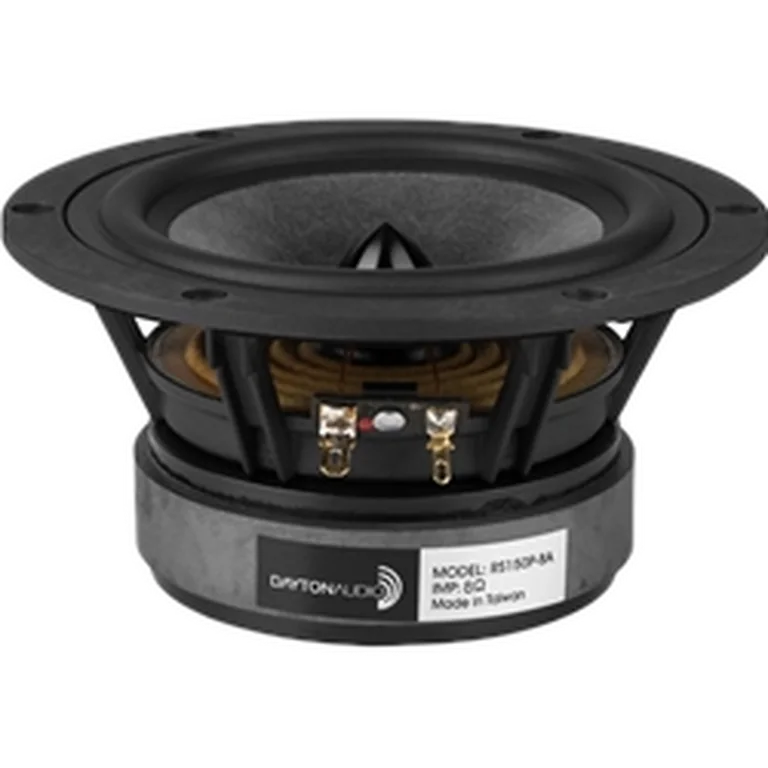

Dayton Audio RS150P-8A standard | Fs 47 Hz, 89.5 dB, Qts 0.340 | LoudspeakerLab

Thiele-Small parameters

Fs: 47 Hz; Qts: 0.340; Qes: 0.430; Qms: 1.660; Vas: 16.70 L; Sd: 85.0 cm²; Re: 6.70 Ω; Le: 0.65 mH; Sensitivity: 89.5 dB; Nominal Z: 7.1 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 70 · DI tracking 51 · DI smoothness 36

Usable passband

Scored passband 69 Hz–4.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~9.7 L · Fb 61 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $47.98 USD
• solen — $80.58 CAD
• soundimports — $59.88 EUR
• theloudspeakerkit — $129.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
