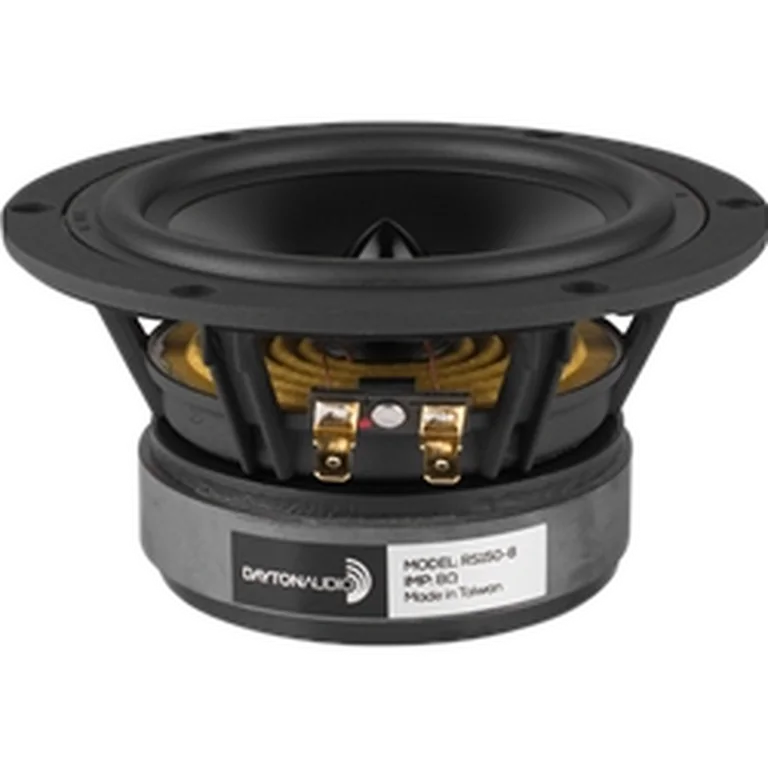

Dayton Audio RS150-8 standard | Fs 46 Hz, 89.7 dB, Qts 0.340 | LoudspeakerLab

Thiele-Small parameters

Fs: 46 Hz; Qts: 0.340; Qes: 0.427; Qms: 1.656; Vas: 16.57 L; Sd: 85.0 cm²; Re: 6.26 Ω; Le: 0.55 mH; Sensitivity: 89.7 dB; Nominal Z: 6.6 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 63 · DI tracking 70 · DI smoothness 36

Usable passband

Scored passband 74 Hz–4.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~9.6 L · Fb 59 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $47.98 USD
• solen — $84.61 CAD
• soundimports — $68.55 EUR
• theloudspeakerkit — $125.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
