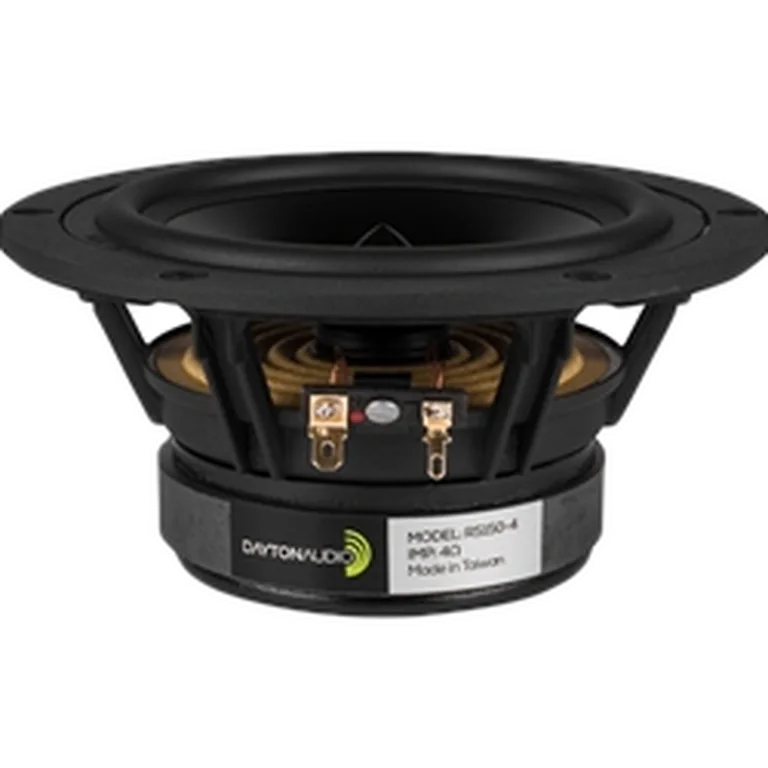

Dayton Audio RS150-4 standard | Fs 45 Hz, 91.6 dB, Qts 0.332 | LoudspeakerLab

Thiele-Small parameters

Fs: 45 Hz; Qts: 0.332; Qes: 0.400; Qms: 1.959; Vas: 16.40 L; Sd: 85.0 cm²; Re: 3.08 Ω; Le: 0.34 mH; Sensitivity: 91.6 dB; Nominal Z: 3.3 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 64 · DI tracking 72 · DI smoothness 40

Usable passband

Scored passband 71 Hz–4.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~9.1 L · Fb 60 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $300.79 PLN
• parts_express — $51.98 USD
• rumoh — $62.40 EUR
• solen — $97.08 CAD
• soundimports — $74.34 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
