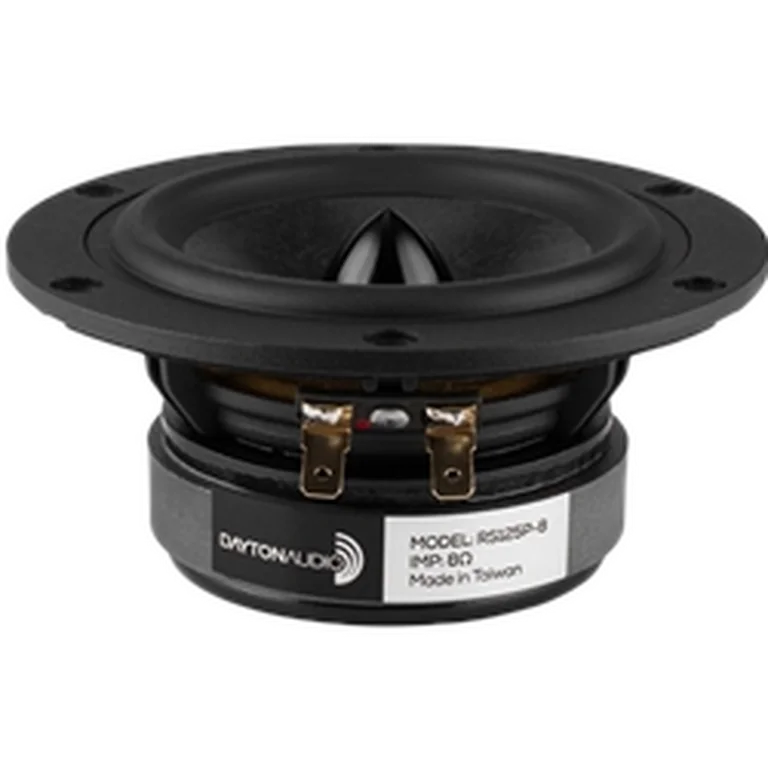

Dayton Audio RS125P-8 standard | Fs 70 Hz, 85.4 dB, Qts 0.440 | LoudspeakerLab

Thiele-Small parameters

Fs: 70 Hz; Qts: 0.440; Qes: 0.530; Qms: 2.560; Vas: 3.98 L; Sd: 52.8 cm²; Re: 6.20 Ω; Le: 0.62 mH; Sensitivity: 85.4 dB; Nominal Z: 6.7 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 78 · DI tracking 45 · DI smoothness 33

Usable passband

Scored passband 104 Hz–6.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~3.9 L · Fb 71 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• solen — $67.80 CAD
• soundimports — $46.65 EUR
• theloudspeakerkit — $99.00 AUD
• parts_express — $39.18 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
