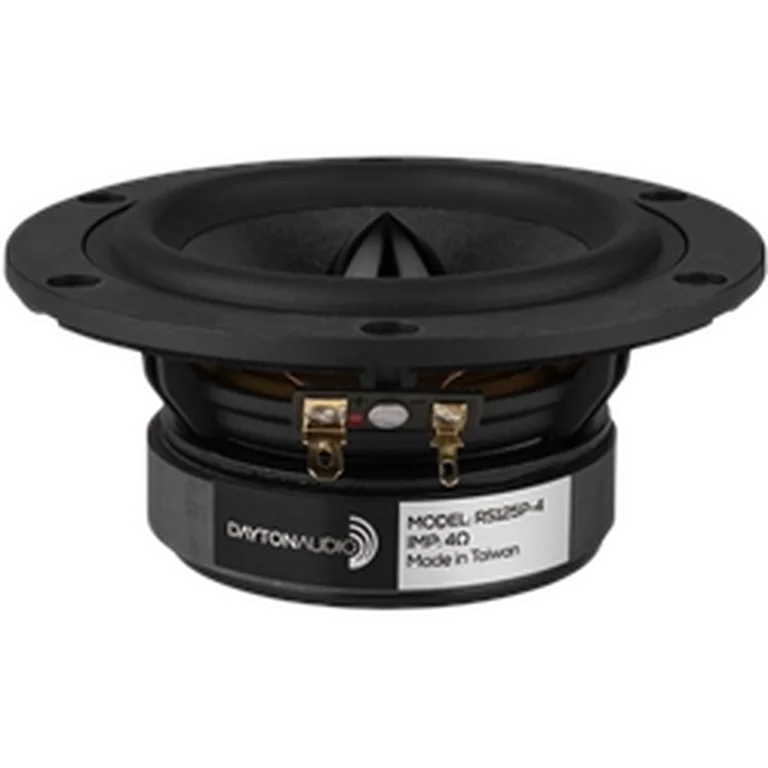

Dayton Audio RS125P-4 standard | Fs 70 Hz, 86.1 dB, Qts 0.480 | LoudspeakerLab

Thiele-Small parameters

Fs: 70 Hz; Qts: 0.480; Qes: 0.570; Qms: 3.190; Vas: 3.98 L; Sd: 54.1 cm²; Re: 3.10 Ω; Le: 0.32 mH; Sensitivity: 86.1 dB; Nominal Z: 3.4 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 71 · DI tracking 40 · DI smoothness 29

Usable passband

Scored passband 104 Hz–6.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~4.8 L · Fb 66 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $279.29 PLN
• parts_express — $39.18 USD
• rumoh — $56.40 EUR
• solen — $72.14 CAD
• soundimports — $53.68 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
