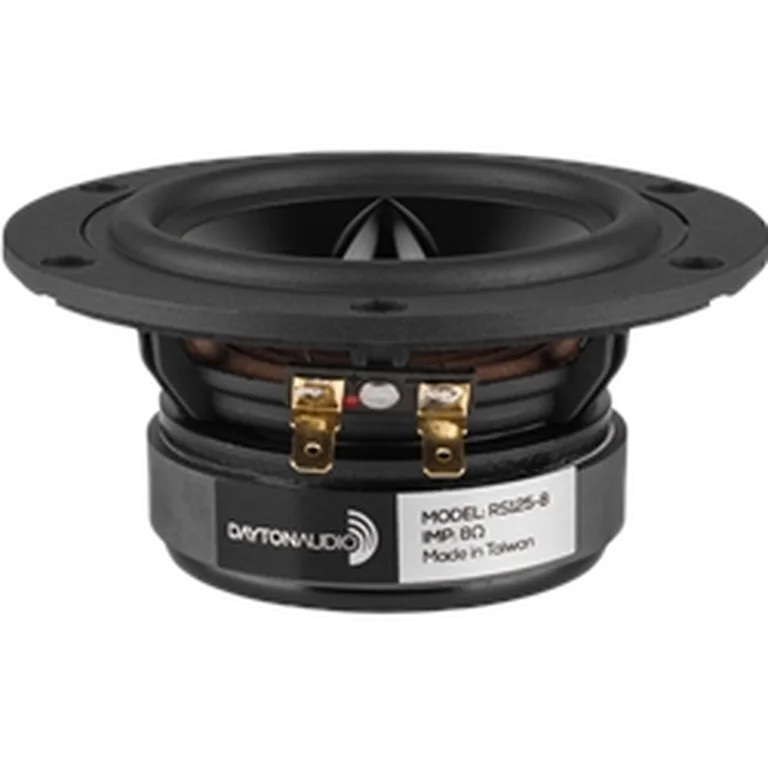

Dayton Audio RS125-8 standard | Fs 59 Hz, 87.8 dB, Qts 0.338 | LoudspeakerLab

Thiele-Small parameters

Fs: 59 Hz; Qts: 0.338; Qes: 0.420; Qms: 1.741; Vas: 4.77 L; Sd: 52.8 cm²; Re: 6.16 Ω; Le: 0.57 mH; Sensitivity: 87.8 dB; Nominal Z: 6.7 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 68 · DI tracking 62 · DI smoothness 34

Usable passband

Scored passband 90 Hz–5.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~2.7 L · Fb 77 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $39.18 USD
• solen — $67.95 CAD
• soundimports — $46.24 EUR
• theloudspeakerkit — $119.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
