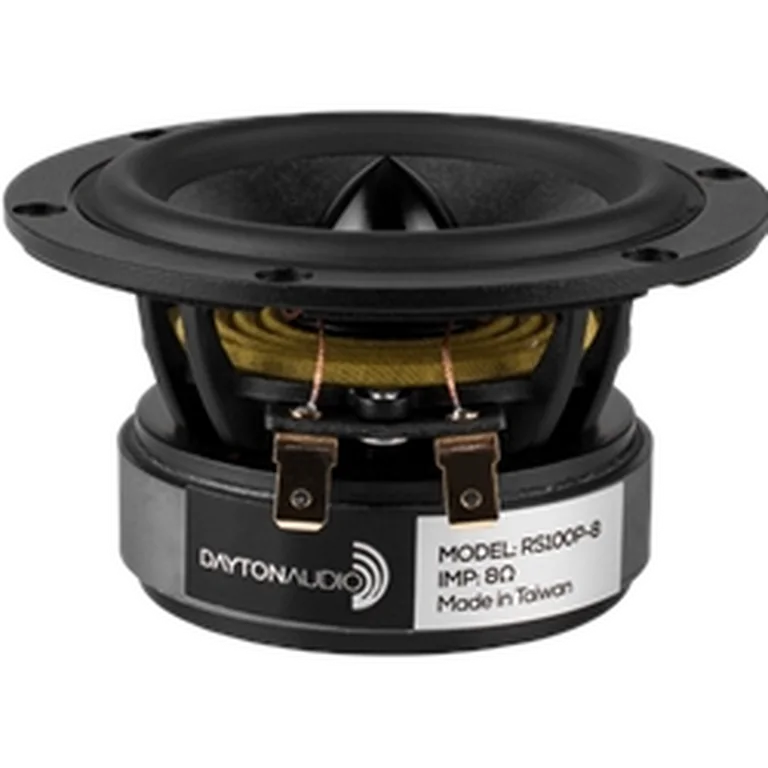

Dayton Audio RS100P-8 standard | Fs 96 Hz, 83.9 dB, Qts 0.540 | LoudspeakerLab

Thiele-Small parameters

Fs: 96 Hz; Qts: 0.540; Qes: 0.710; Qms: 2.180; Vas: 1.82 L; Sd: 37.4 cm²; Re: 6.60 Ω; Le: 0.51 mH; Sensitivity: 83.9 dB; Nominal Z: 7.1 Ω; Measured range: 20-19346 Hz

Driver quality scores

On-axis flatness 68 · DI tracking 0 · DI smoothness 34

Usable passband

Scored passband 143 Hz–13.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~2.9 L · Fb 82 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $236.29 PLN
• parts_express — $31.18 USD
• rumoh — $60.70 EUR
• solen — $60.46 CAD
• soundimports — $45.41 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
