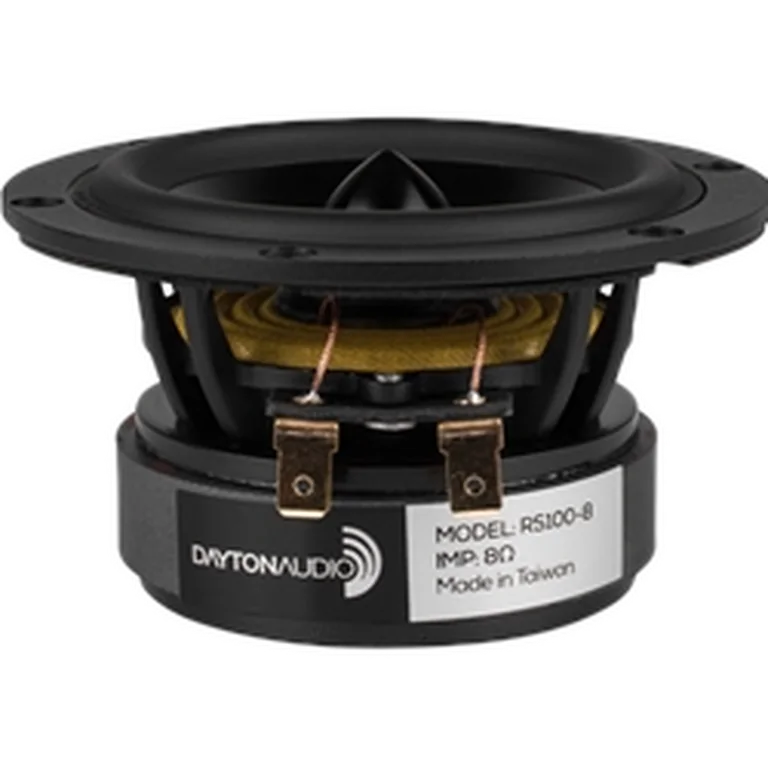

Dayton Audio RS100-8 standard | Fs 92 Hz, 84.2 dB, Qts 0.576 | LoudspeakerLab

Thiele-Small parameters

Fs: 92 Hz; Qts: 0.576; Qes: 0.761; Qms: 2.370; Vas: 1.43 L; Sd: 35.3 cm²; Re: 6.39 Ω; Le: 0.50 mH; Sensitivity: 84.2 dB; Nominal Z: 6.9 Ω; Measured range: 20-19670 Hz

Driver quality scores

On-axis flatness 65 · DI tracking 35 · DI smoothness 18

Usable passband

Scored passband 139 Hz–7.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~2.7 L · Fb 75 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $29.58 USD
• solen — $57.73 CAD
• soundimports — $40.45 EUR
• theloudspeakerkit — $89.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
