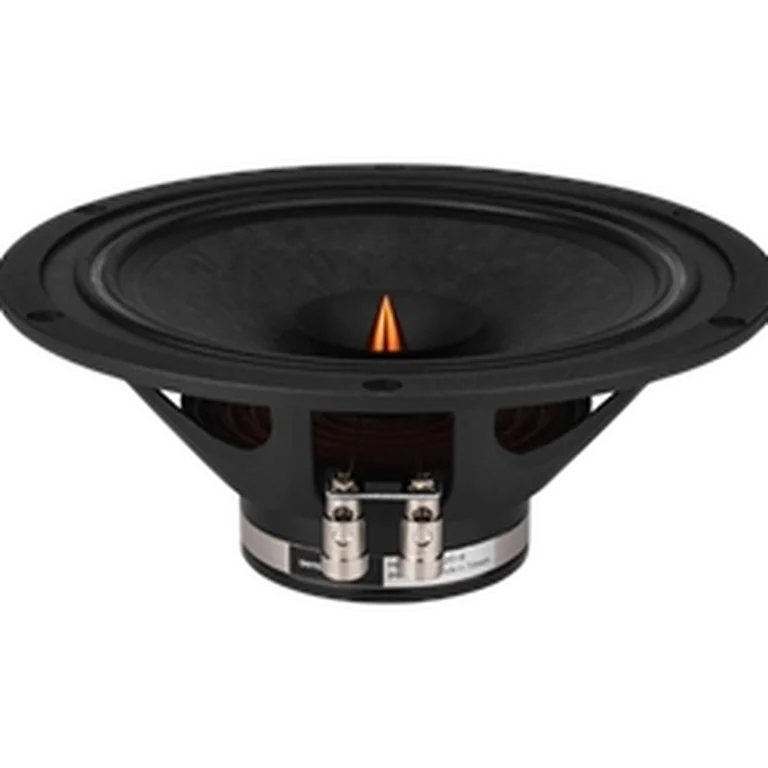

Dayton Audio PS220-8 standard | Fs 46 Hz, 99.4 dB, Qts 0.380 | LoudspeakerLab

Thiele-Small parameters

Fs: 46 Hz; Qts: 0.380; Qes: 0.400; Qms: 5.730; Vas: 90.33 L; Sd: 216.4 cm²; Re: 6.20 Ω; Le: 0.73 mH; Sensitivity: 99.4 dB; Nominal Z: 6.8 Ω; Measured range: 20-19670 Hz

Driver quality scores

On-axis flatness 52 · DI tracking 0 · DI smoothness 27

Usable passband

Scored passband 74 Hz–11.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~64.9 L · Fb 54 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $1031.79 PLN
• parts_express — $163.98 USD
• rumoh — $239.00 EUR
• solen — $203.39 CAD
• soundimports — $198.31 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
