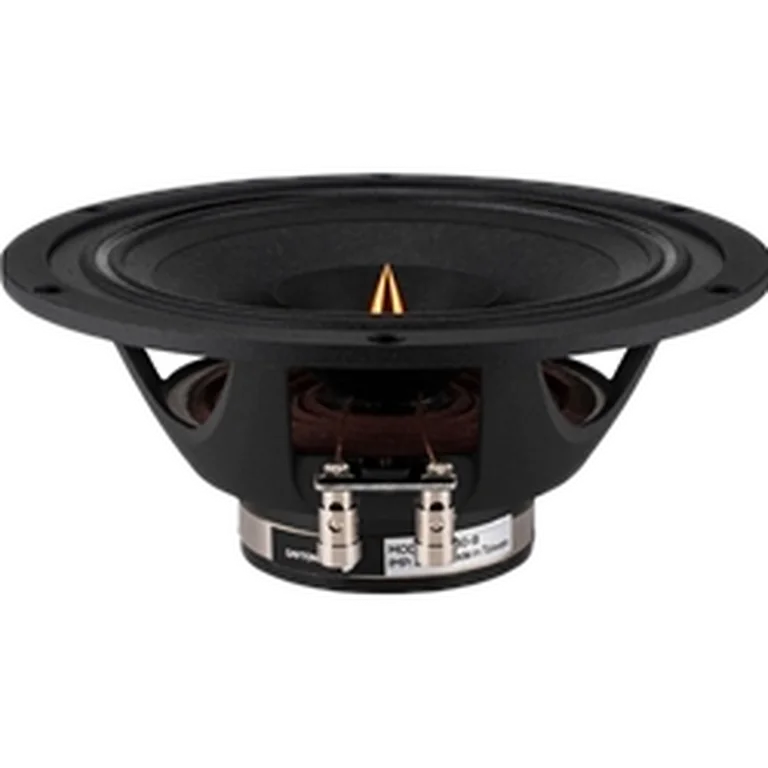

Dayton Audio PS180-8 standard | Fs 59 Hz, 101.4 dB, Qts 0.325 | LoudspeakerLab

Thiele-Small parameters

Fs: 59 Hz; Qts: 0.325; Qes: 0.357; Qms: 3.638; Vas: 27.63 L; Sd: 136.8 cm²; Re: 6.41 Ω; Le: 0.63 mH; Sensitivity: 101.4 dB; Nominal Z: 7.1 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 54 · DI tracking 64 · DI smoothness 46

Usable passband

Scored passband 100 Hz–3.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~14.7 L · Fb 79 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $816.79 PLN
• parts_express — $109.98 USD
• rumoh — $208.19 EUR
• solen — $178.65 CAD
• soundimports — $156.98 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
