Dayton Audio PCS175-8 standard | Fs 56 Hz, 84.3 dB, Qts 0.830 | LoudspeakerLab

Dayton Audio PCS175-8 standard measurements on LoudspeakerLab. 84.3 dB sensitivity. Fs 56 Hz. Qts 0.830. Also known as PCS175-8 - infinite baffle -...

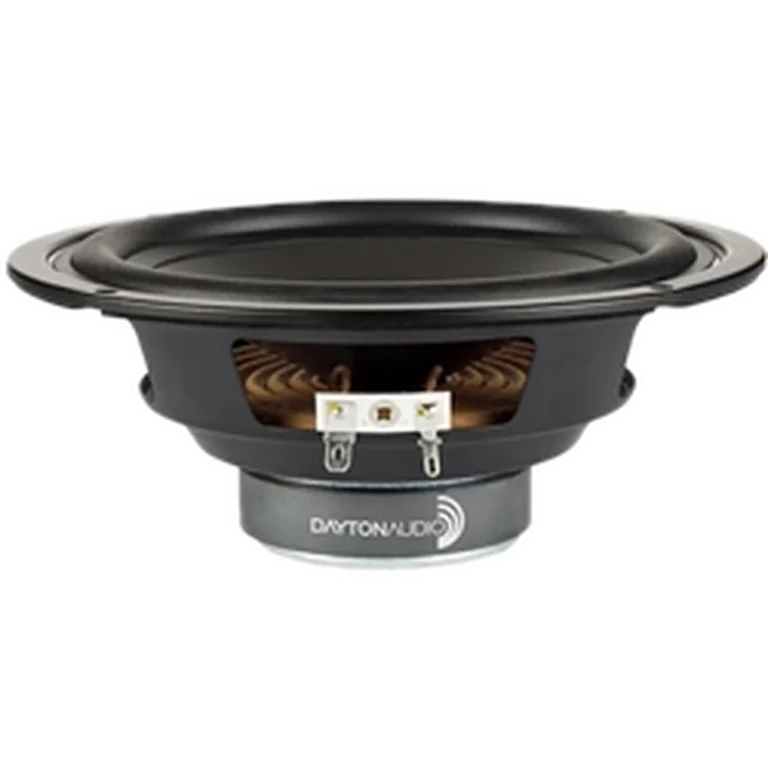

Preview

Thiele-Small parameters

Fs: 56 Hz; Qts: 0.830; Qes: 1.150; Qms: 3.000; Vas: 14.81 L; Sd: 143.0 cm²; Re: 6.60 Ω; Le: 1.25 mH; Sensitivity: 84.3 dB; Nominal Z: 7.2 Ω; Measured range: 10-20000 Hz

Driver quality scores

On-axis flatness 52 · DI tracking 46 · DI smoothness 60 · THD 67 · Composite 54

Usable passband

Scored passband 90 Hz–3.7 kHz

Measurement coverage

Distortion measurements · Nearfield data · Measured profiles · Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~27.4 L

Measurement profiles

Public designs

2 public loudspeaker designs on LoudspeakerLab use this driver.

Where to buy

Measurement quality

LoudspeakerLab evidence grade: A- (86.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

PCS175-8 - infinite baffle - surface mounted
