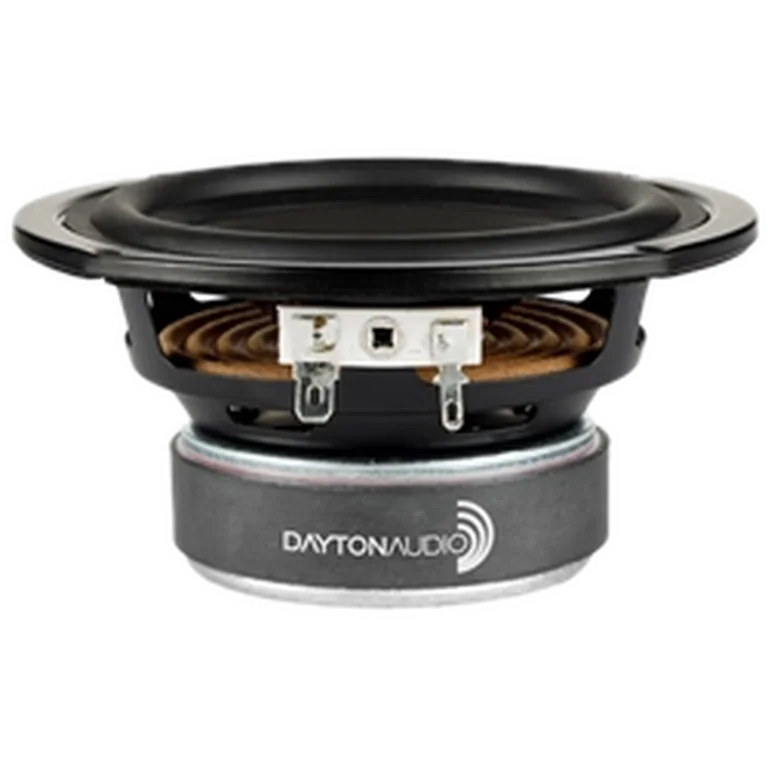

Dayton Audio PCS115-8 standard | Fs 87 Hz, 81.5 dB, Qts 0.840 | LoudspeakerLab

Thiele-Small parameters

Fs: 87 Hz; Qts: 0.840; Qes: 1.220; Qms: 2.690; Vas: 0.06 L; Sd: 51.5 cm²; Re: 6.80 Ω; Le: 0.55 mH; Sensitivity: 81.5 dB; Nominal Z: 7.4 Ω; Measured range: 5-40000 Hz

Driver quality scores

On-axis flatness 71 · DI tracking 48 · DI smoothness 39

Usable passband

Scored passband 131 Hz–6.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~0.1 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $12.98 USD
• solen — $18.18 CAD
• soundimports — $14.01 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
