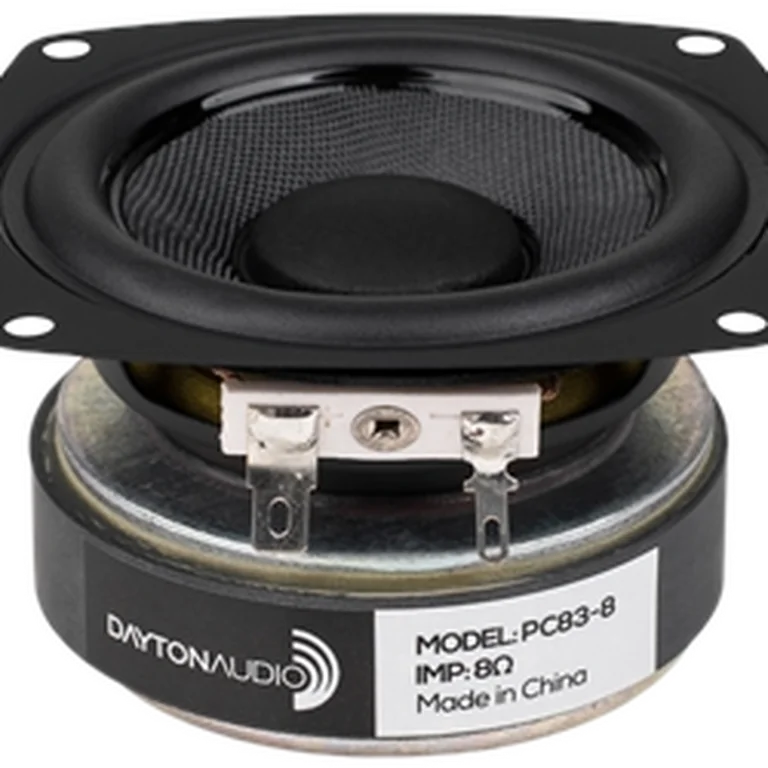

Dayton Audio PC83-8 standard | Fs 82 Hz, 84.2 dB, Qts 0.633 | LoudspeakerLab

Thiele-Small parameters

Fs: 82 Hz; Qts: 0.633; Qes: 0.765; Qms: 3.679; Vas: 1.79 L; Sd: 30.2 cm²; Re: 6.77 Ω; Le: 0.60 mH; Sensitivity: 84.2 dB; Nominal Z: 7.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 47 · DI tracking 0 · DI smoothness 0

Usable passband

Scored passband 124 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~3.2 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $67.30 PLN
• parts_express — $15.49 USD
• solen — $27.47 CAD
• soundimports — $12.93 EUR
• theloudspeakerkit — $36.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
