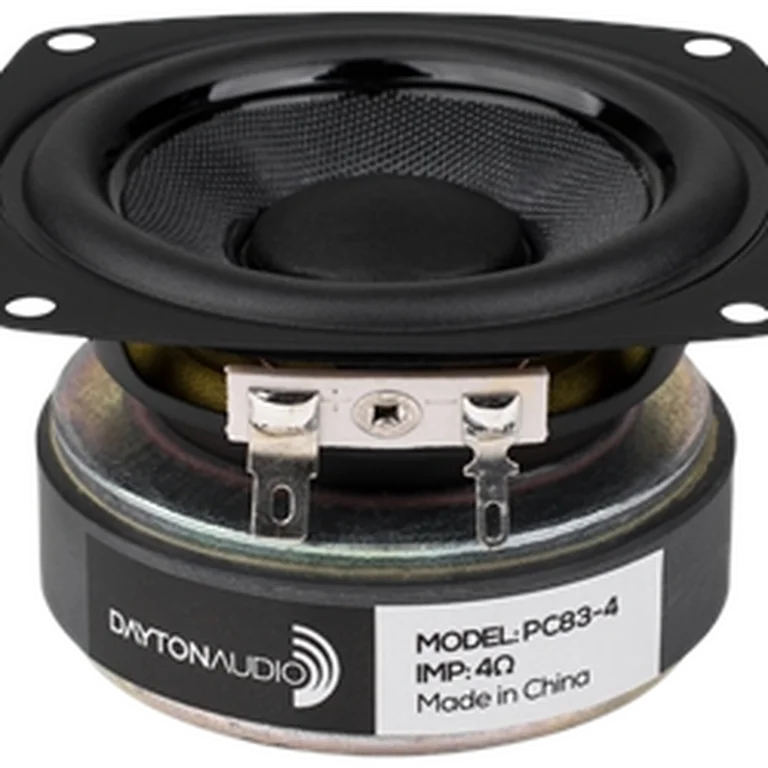

Dayton Audio PC83-4 standard | Fs 80 Hz, 85.8 dB, Qts 0.538 | LoudspeakerLab

Thiele-Small parameters

Fs: 80 Hz; Qts: 0.538; Qes: 0.639; Qms: 3.406; Vas: 1.89 L; Sd: 30.2 cm²; Re: 3.91 Ω; Le: 0.38 mH; Sensitivity: 85.8 dB; Nominal Z: 4.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 47 · DI tracking 0 · DI smoothness 0

Usable passband

Scored passband 120 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~2.9 L · Fb 69 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $67.30 PLN
• parts_express — $15.49 USD
• solen — $27.47 CAD
• soundimports — $12.93 EUR
• theloudspeakerkit — $39.95 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
