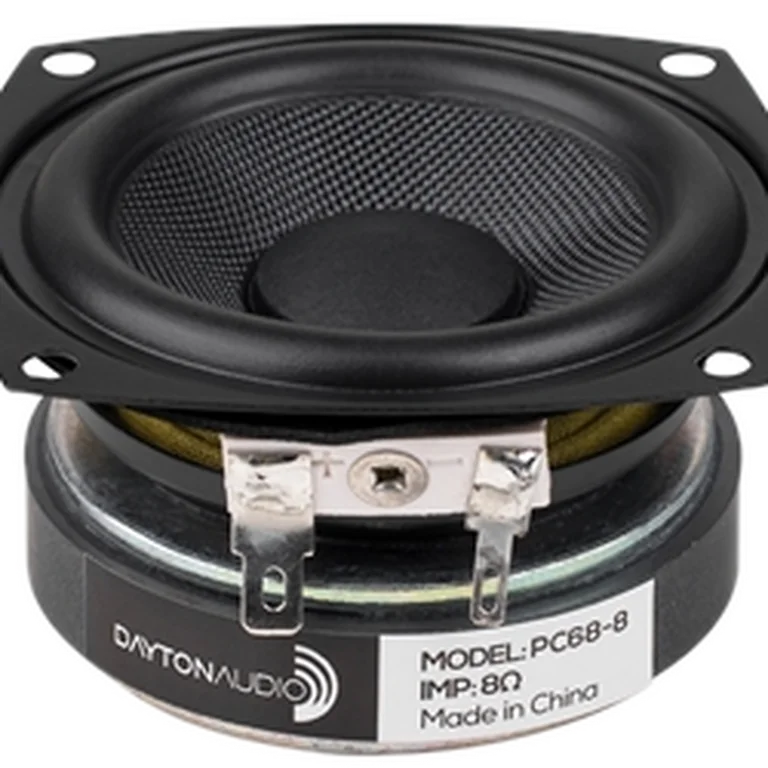

Dayton Audio PC68-8 standard | Fs 109 Hz, 82.4 dB, Qts 0.636 | LoudspeakerLab

Thiele-Small parameters

Fs: 109 Hz; Qts: 0.636; Qes: 0.883; Qms: 2.266; Vas: 1.35 L; Sd: 30.2 cm²; Re: 6.76 Ω; Le: 0.47 mH; Sensitivity: 82.4 dB; Nominal Z: 7.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 75 · DI tracking 77 · DI smoothness 42

Usable passband

Scored passband 165 Hz–3.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~2.4 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $11.89 USD
• solen — $18.58 CAD
• soundimports — $11.12 EUR
• theloudspeakerkit — $29.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
