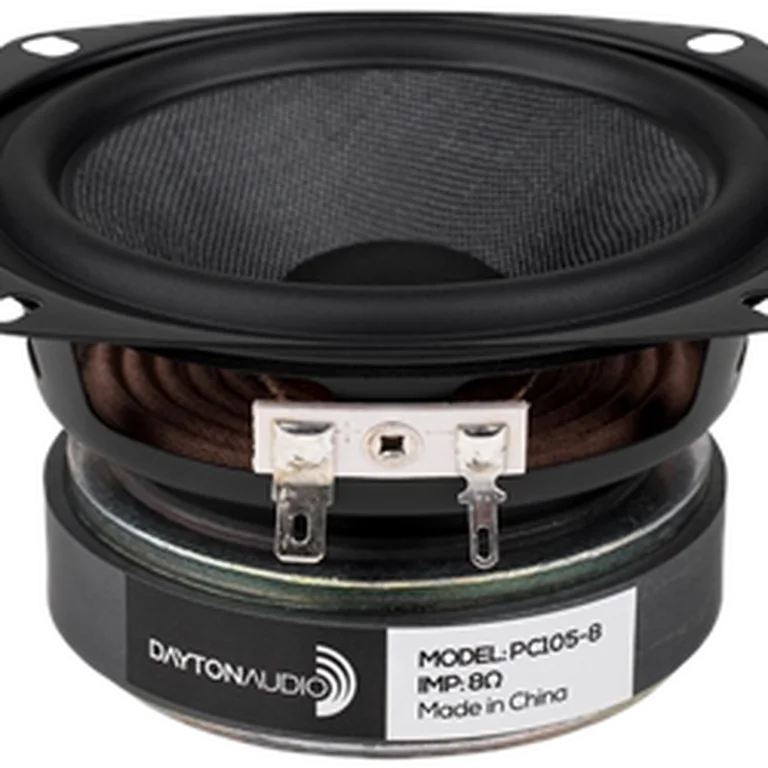

Dayton Audio PC105-8 standard | Fs 85 Hz, 86.7 dB, Qts 0.637 | LoudspeakerLab

Thiele-Small parameters

Fs: 85 Hz; Qts: 0.637; Qes: 0.883; Qms: 2.285; Vas: 3.31 L; Sd: 52.8 cm²; Re: 6.67 Ω; Le: 0.54 mH; Sensitivity: 86.7 dB; Nominal Z: 7.1 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 71 · DI tracking 53 · DI smoothness 37

Usable passband

Scored passband 127 Hz–6.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~5.8 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $17.79 USD
• solen — $28.02 CAD
• soundimports — $16.49 EUR
• theloudspeakerkit — $42.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
