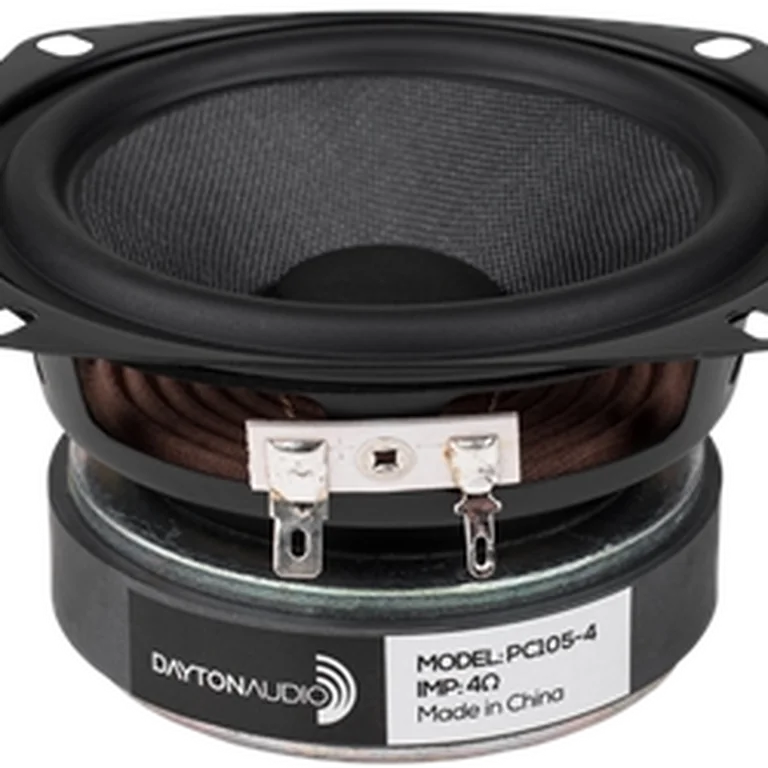

Dayton Audio PC105-4 standard | Fs 81 Hz, 89.8 dB, Qts 0.512 | LoudspeakerLab

Thiele-Small parameters

Fs: 81 Hz; Qts: 0.512; Qes: 0.670; Qms: 2.172; Vas: 3.58 L; Sd: 52.8 cm²; Re: 3.32 Ω; Le: 0.32 mH; Sensitivity: 89.8 dB; Nominal Z: 3.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 73 · DI tracking 57 · DI smoothness 36

Usable passband

Scored passband 124 Hz–6.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~5.0 L · Fb 72 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $17.79 USD
• solen — $28.02 CAD
• soundimports — $16.49 EUR
• theloudspeakerkit — $42.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
