Dayton Audio PA200-8 standard | Fs 55 Hz, 91.2 dB, Qts 0.480 | LoudspeakerLab

Dayton Audio PA200-8 standard measurements on LoudspeakerLab. 91.2 dB sensitivity. Fs 55 Hz. Qts 0.480. Evidence grade C+ (56.8/100).

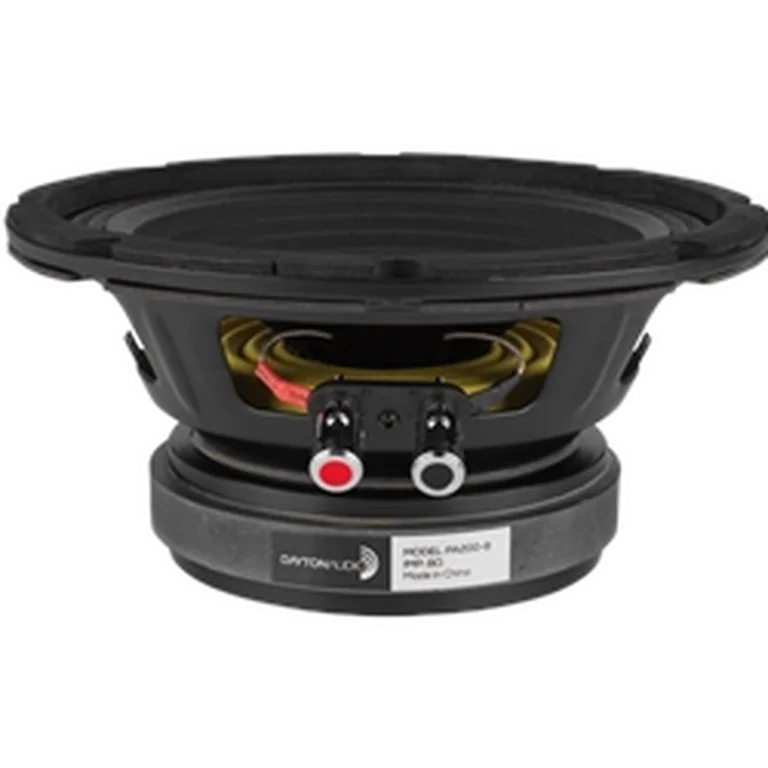

Preview

Thiele-Small parameters

Fs: 55 Hz; Qts: 0.480; Qes: 0.510; Qms: 6.170; Vas: 26.60 L; Sd: 210.4 cm²; Re: 6.20 Ω; Le: 1.09 mH; Sensitivity: 91.2 dB; Nominal Z: 6.8 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 51 · DI tracking 53 · DI smoothness 65

Usable passband

Scored passband 82 Hz–3.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~31.9 L · Fb 52 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
