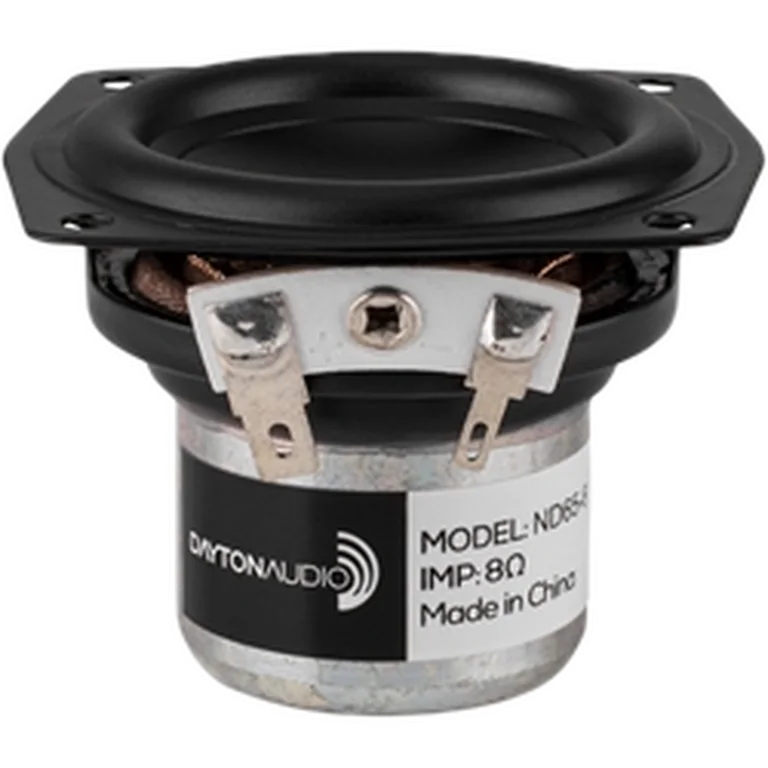

Dayton Audio ND65-8 standard | Fs 102 Hz, 78.0 dB, Qts 0.654 | LoudspeakerLab

Thiele-Small parameters

Fs: 102 Hz; Qts: 0.654; Qes: 0.711; Qms: 8.226; Vas: 0.36 L; Sd: 16.6 cm²; Re: 7.39 Ω; Le: 0.61 mH; Sensitivity: 78.0 dB; Nominal Z: 8.2 Ω; Measured range: 15-20000 Hz

Driver quality scores

On-axis flatness 78 · DI tracking 88 · DI smoothness 78

Usable passband

Scored passband 151 Hz–1.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~0.6 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $135.24 PLN
• parts_express — $23.98 USD
• rumoh — $31.45 EUR
• solen — $43.47 CAD
• soundimports — $25.99 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
